To remove

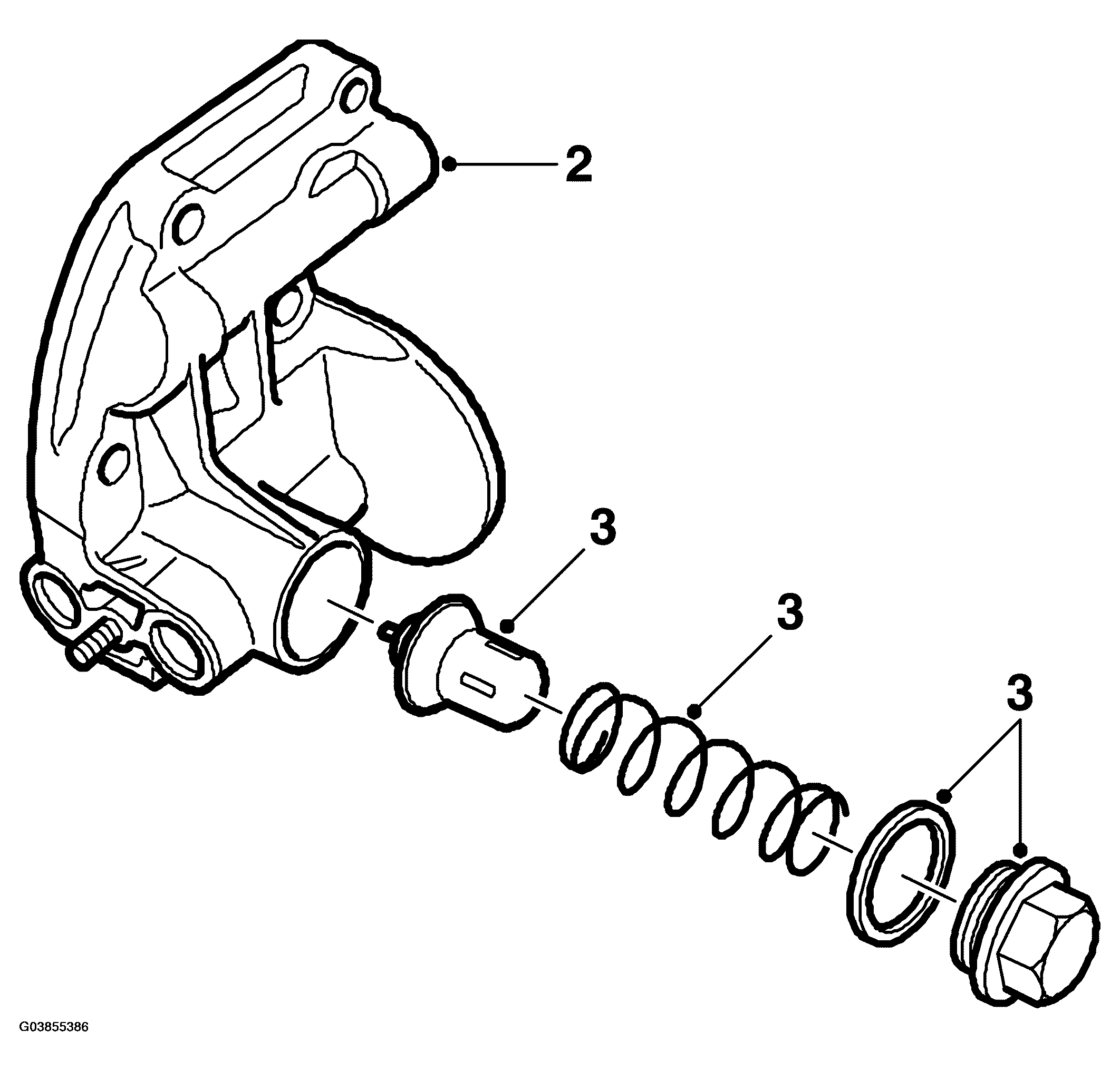

Fig 1: Illustration For Steps 2-3
G03855386Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Raise the car, remove the cover and unscrew the plug.
  2. Remove the adapter housing or loosen the A/C-compressor slightly.
  3. Extract the spring and thermostat.
