To Fit

  1. Apply vaseline (part no. 30 20 271) or equivalent to the sensor threads. Fit the sensor.

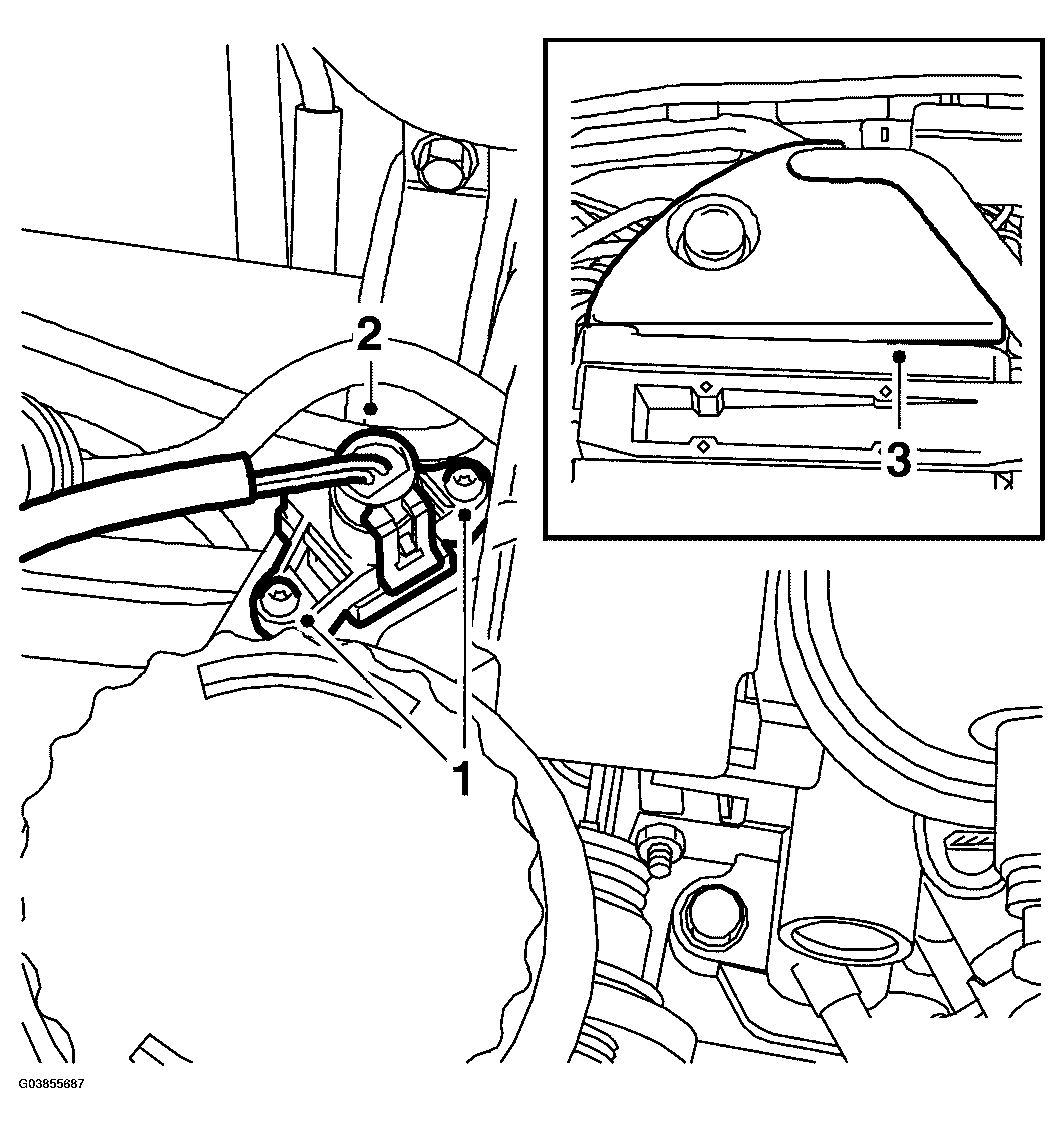

    Fig 1: Illustration For Step 1-3
    G03855687Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Spray the connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
  3. Fit the upper engine cover.
