Home › Saab › 2005 › 9-5 Linear, Standard › Repair and Diagnosis › Engine Performance › TRIONIC T7 Fuel Control System, 4-CYL. › Fault Diagnosis, Symptoms › Cruise Control Not Working › Notes

Cruise Control Not Working: Notes

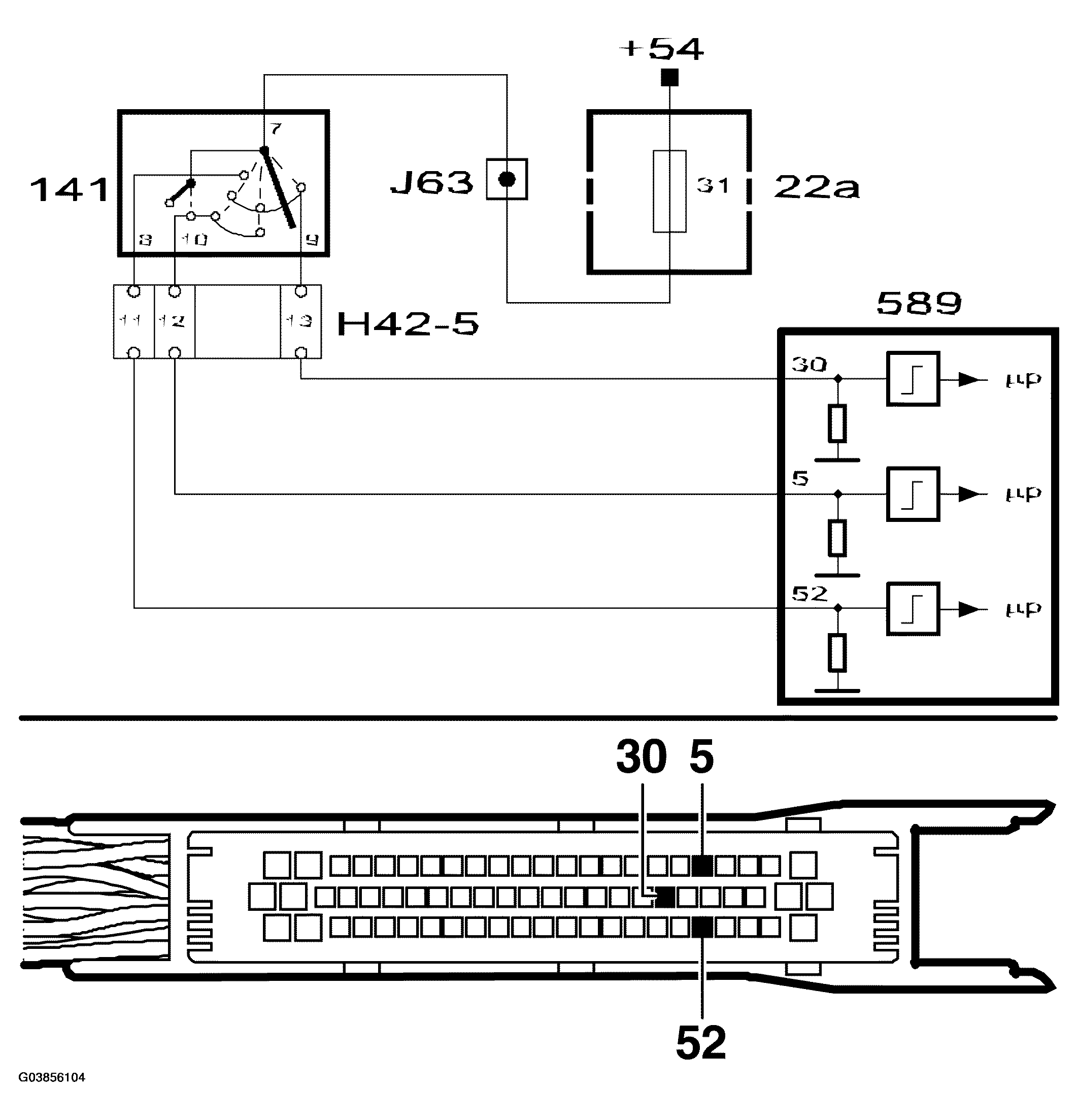

Fig 1: Cruise Control Not Working - Circuit Diagram
G03856104Courtesy of SAAB-SCANIA OF AMERICA, INC.
