To Remove

  1. Remove the gearbox. See MANUAL GEARBOX .

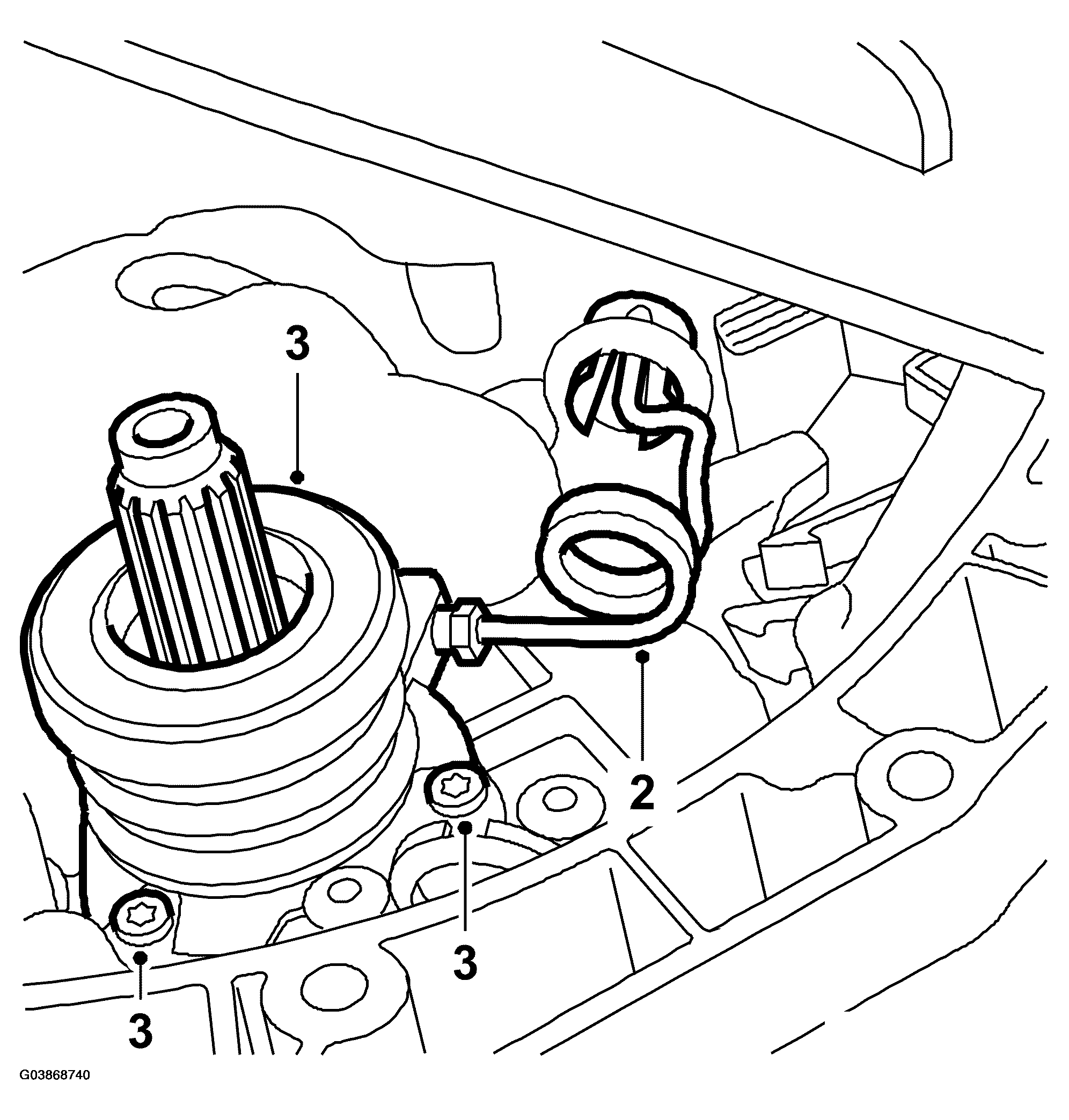

    Fig 1: Illustration For Steps 2 & 3
    G03868740Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Detach the delivery pipe.
  3. Remove the slave cylinder's three retaining screws and withdraw the slave cylinder.
