Driven Plate

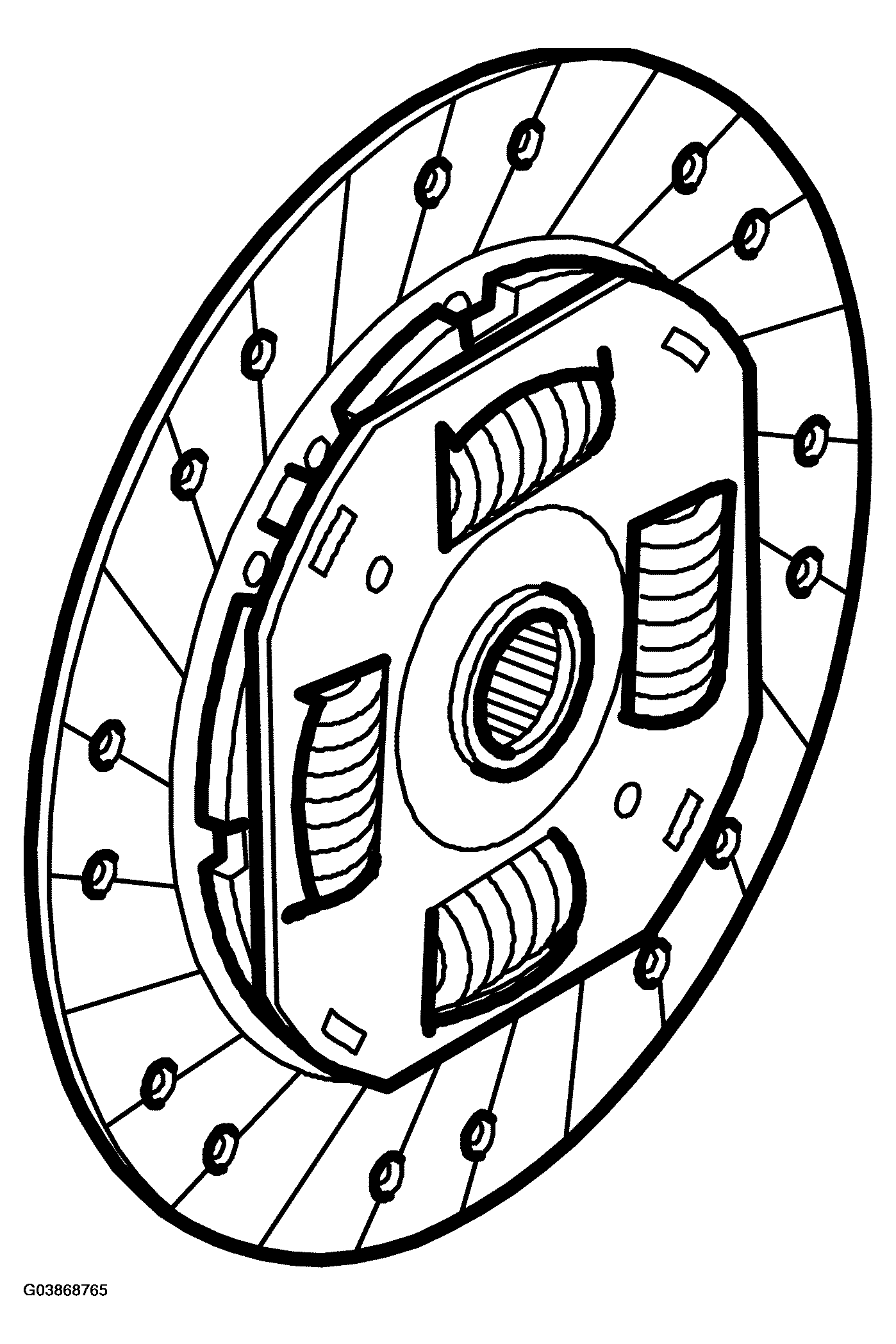

Fig 1: Identifying Driven Plate

Courtesy of SAAB-SCANIA OF AMERICA, INC.

DRIVEN PLATE DESCRIPTION

Manufacturer		Fichtel & Sachs
Type		Single dry-plate clutch with diaphragm spring
Diameter	mm	228
Diameter, 4-cyl. diesel	mm	240
Lining thickness, new driven plate	mm	7,3 0,3
Lining thickness, Min.	mm	5.5
