Slave Cylinder

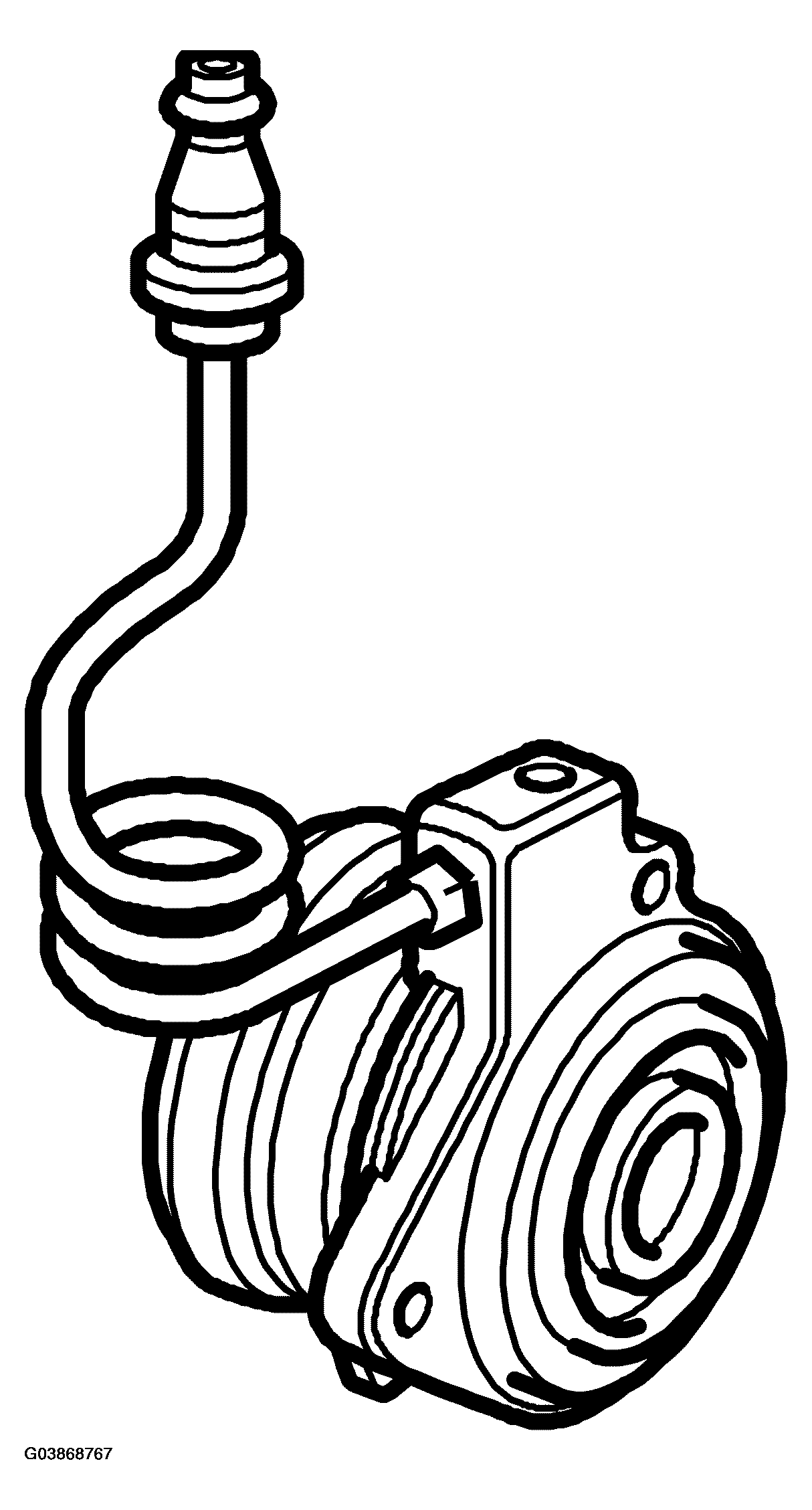

Fig 1: Identifying Slave Cylinder
Courtesy of SAAB-SCANIA OF AMERICA, INC.
SLAVE CYLINDER DESCRIPTION
Type
CSC (Concentric slave cylinder)
Effective area
mm
2
58515
Stroke
mm
80.5
