Fuel Hose/Pipes Routing Diagram

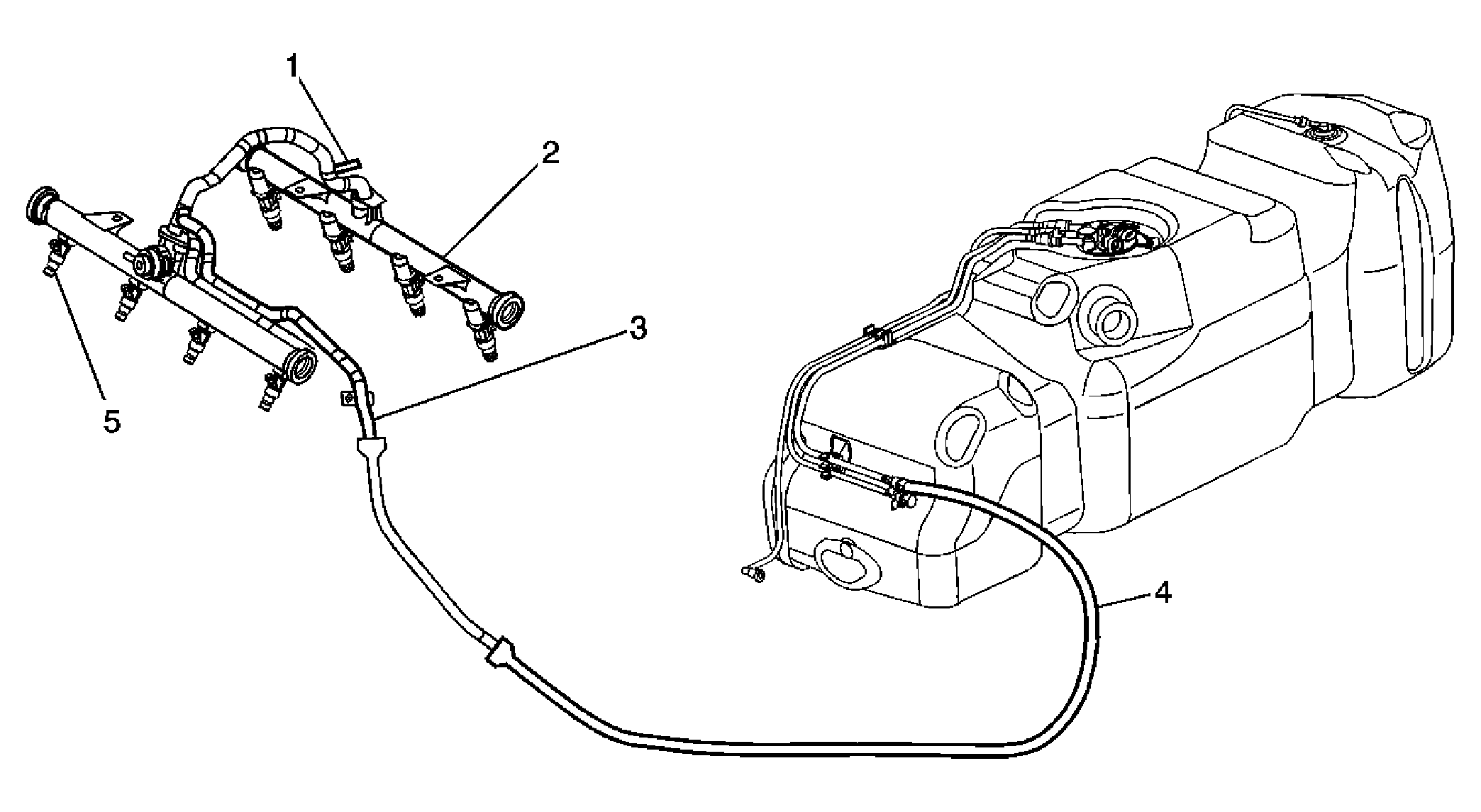

Fig 1: Fuel Hose/Pipes Routing Diagram (Single Fuel Tank)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pressure Service Connection
2	Fuel Injector Rail
3	Fuel Rail Feed Pipe
4	Fuel Feed Hose
5	Fuel Injector
