Adjustable Pedals Component Views

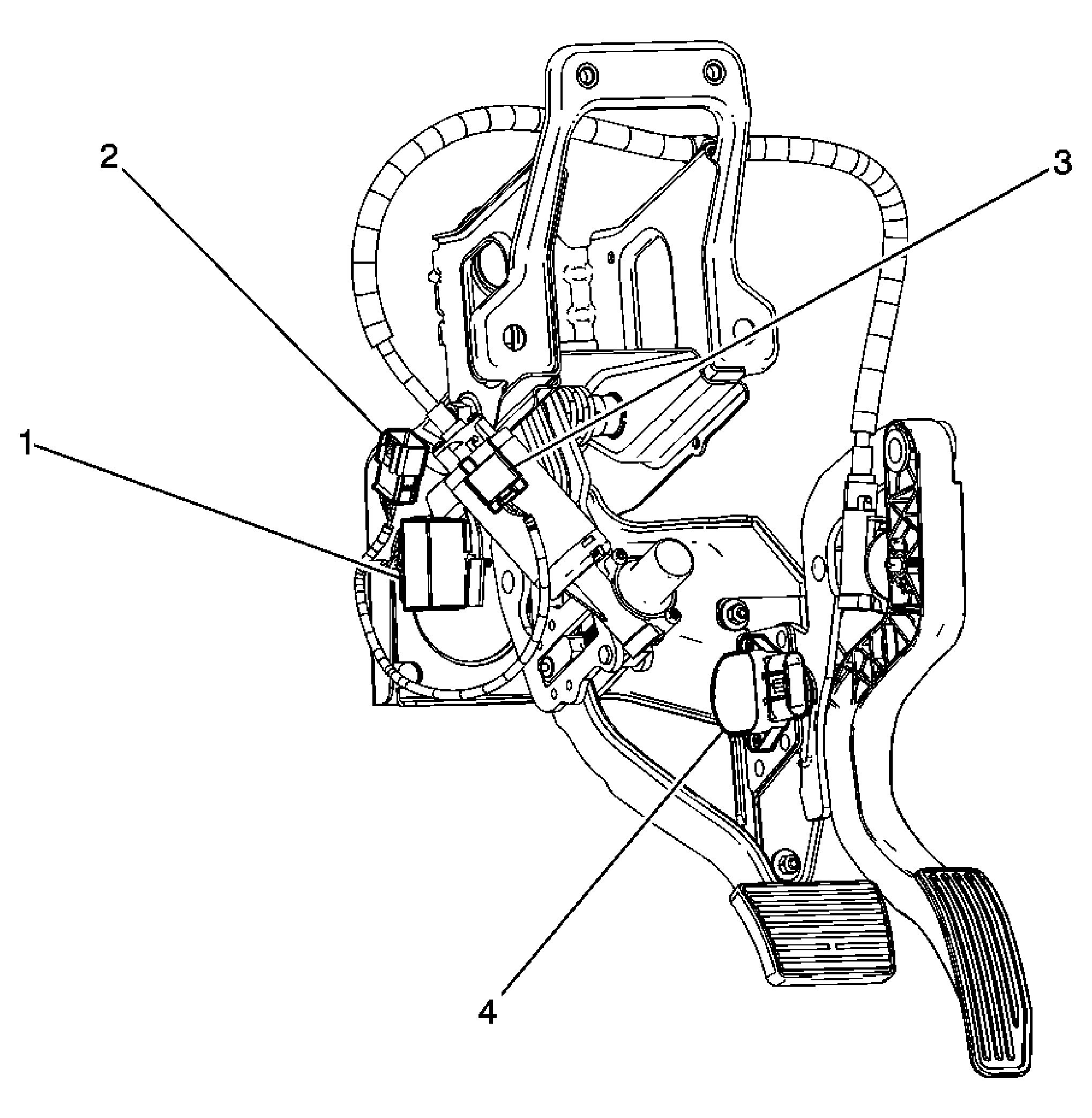

Fig 1: Lower LF of the Passenger Compartment - Pedal Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Adjustable Pedals (EAP) Relay
2	C225
3	Electronic Adjustable Pedals (EAP) Assembly Connector
4	Accelerator Pedal Position (APP) Sensor
