Door Control Module Schematics

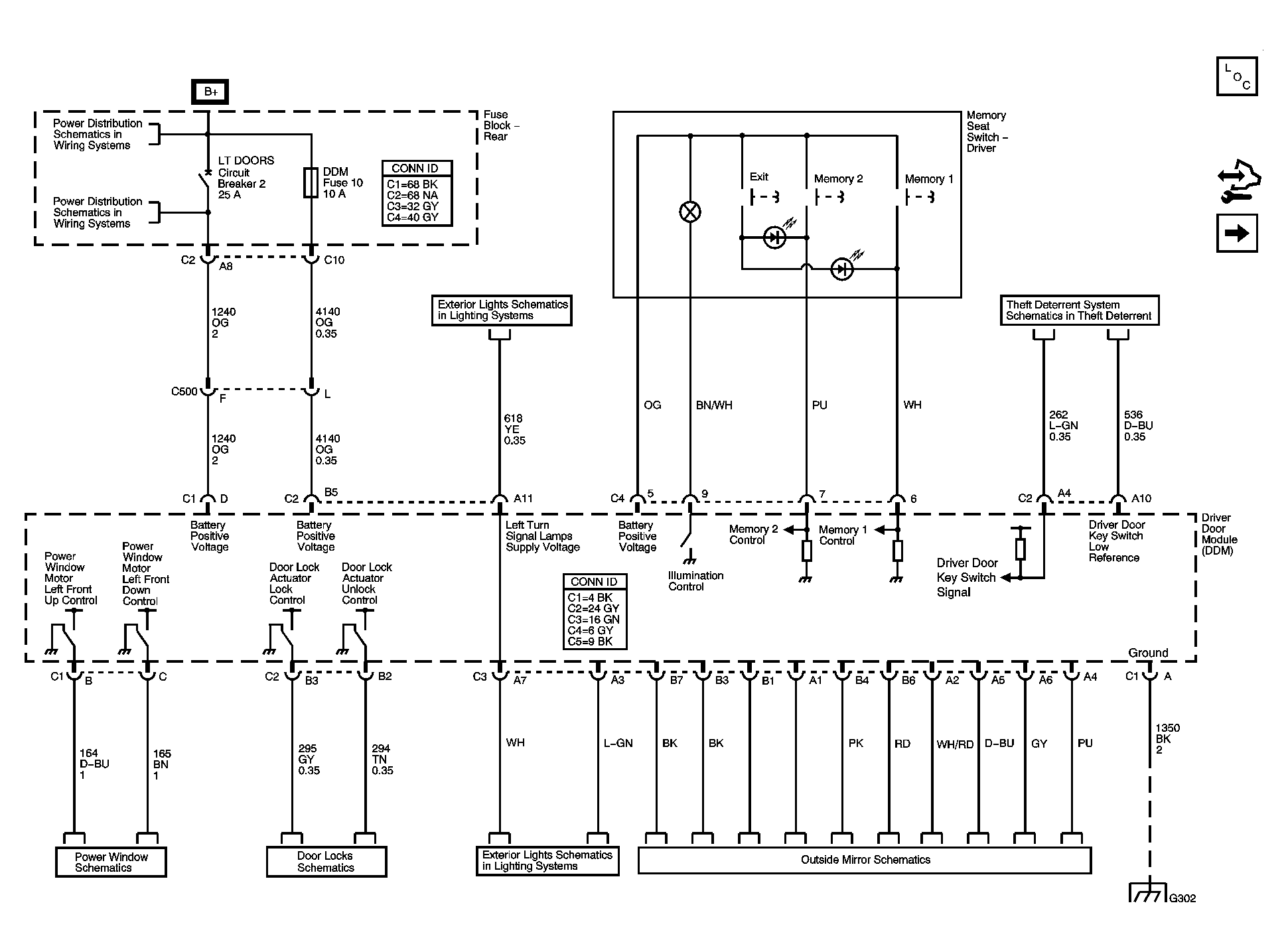

Fig 1: Power, Ground & Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Serial Data & Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

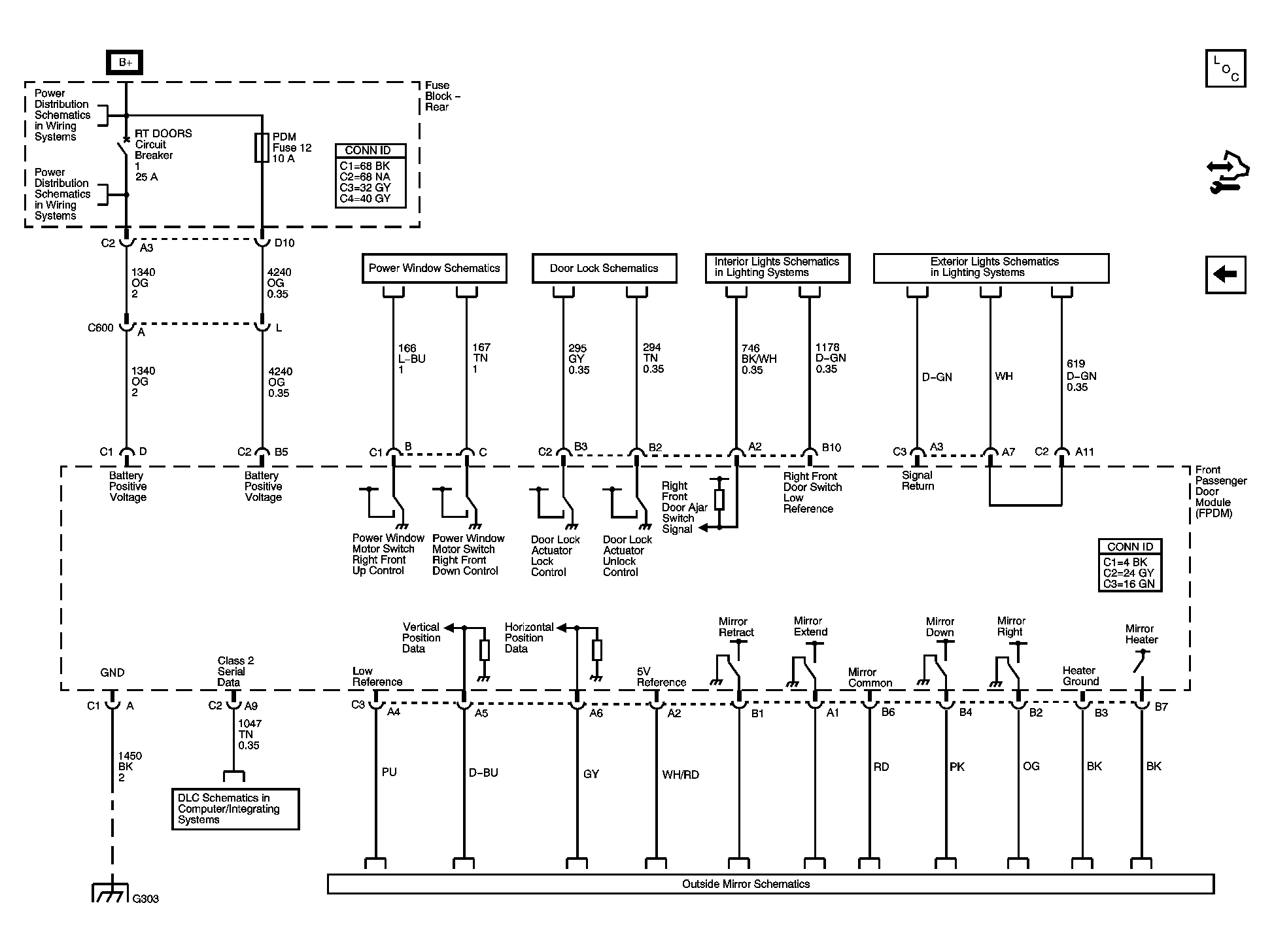

Fig 3: Front Passenger Door Schematic

Courtesy of GENERAL MOTORS CORP.
