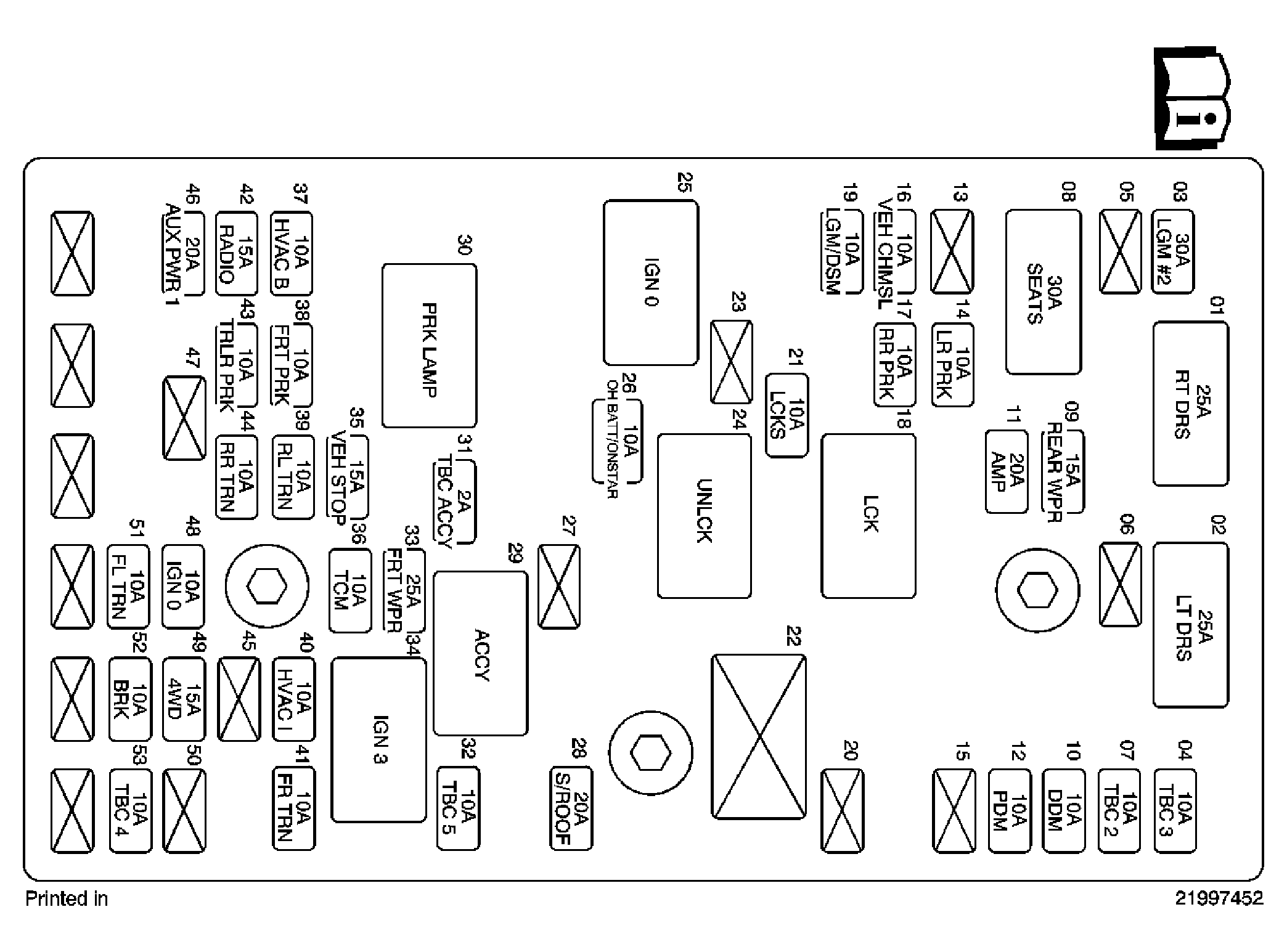

Fuse Block - Rear, Label
Fuse Block - Rear, Label Usage
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | RT DRS Circuit Breaker | 25A | Front Passenger Door Module (FPDM), Window Switch - RR |
| 2 | LT DRS Circuit Breaker | 25A | Driver Door Module (DDM), Window Switch - LR |
| 3 | LGM #2 Fuse | 30A | Liftgate Module (LGM) |
| 4 | TBC 3 Fuse | 10A | Body Control Module (BCM) |
| 5-6 | - | - | Not Used |
| 7 | TBC 2 Fuse | 10A | Body Control Module (BCM) |
| 8 | SEATS Circuit Breaker | 30A | Lumbar Adjuster Switch - Passenger, Memory Seat module - Driver, Seat Adjuster Switch - Passenger |
| 9 | REAR WPR Circuit Breaker | 15A | Rear Window Wiper Motor |
| 10 | DDM Fuse | 10A | Driver Door Module (DDM) |
| 11 | AMP Fuse | 20A | Audio Amplifier |
| 12 | PDM Fuse | 10A | Front Passenger Door Module (FPDM) |
| 13 | - | - | Not Used |
| 14 | LR PRK Fuse | 10A | License Lamp - Left, License Lamp - Right, Tail Lamp Circuit Board - Left |
| 15 | - | - | Not Used |
| 16 | VEH CHMSL Fuse | 10A | Center High Mounted Stop Lamp (CHMSL) |
| 17 | RR PRK Fuse | 10A | Tail Lamp Circuit Board - Right |
| 18 | LCK Relay | - | Door Latch Assembly - LR, Door Latch Assembly - RR |
| 19 | LGM/DSM Fuse | 10A | Liftgate Module (LGM), Memory Seat Module - Driver |
| 20 | - | - | Not Used |
| 21 | LCKS Fuse | 10A | LCK Relay, UNLCK Relay |
| 22-23 | - | - | Not Used |
| 24 | UNLCK Relay | - | Door Latch Assembly - LR, Door Latch Assembly - RR |
| 25 | IGN 0 Relay | - | IGN 0 Fuse |
| 26 | OH BATT/ONSTAR Fuse | 10A | Digital Video Disc (DVD) Player, Garage Door Opener, Vehicle Communication Interface Module (VCIM) |
| 27 | - | - | Not Used |
| 28 | S/ROOF Fuse | 20A | Sunroof Motor |
| 29 | ACCY Relay | - | FRT WPR Fuse, TCM Fuse |
| 30 | PARK LP PRK LAMP Relay | - | FRT PRK Fuse, LR PRK Fuse, RR PRK Fuse, TRLR PRK Fuse |
| 31 | TBC ACC Fuse | 3A | Body Control Module (BCM) |
| 32 | TBC 5 Fuse | 10A | Body Control Module (BCM) |
| 33 | FRT WPR Fuse | 25A | Windshield Wiper Motor |
| 34 | IGN 3 Relay | - | 4WD Fuse, BRK Fuse, HVAC I Fuse |
| 35 | VEH STOP Fuse | 15A | Engine Control Module (ECM), Powertrain Control Module (PCM), Transmission Control Module (TCM), Trailer Brake Wiring |
| 36 | TCM Fuse | 10A | Transmission Control Module (TCM) |
| 37 | HVAC B Fuse | 10A | HVAC Control Module, HVAC Control Module - Auxiliary |
| 38 | FRT PRK Fuse | 10A | Marker Lamp - LF, Marker Lamp - RF, Park/Turn Signal lamp - LF, Park/Turn Signal lamp - RF |
| 39 | RL TRN | 10A | Driver Door Module (DDM), Instrument panel Cluster (IPC), Marker Lamp - LF, Park/Turn Signal lamp - LF, Tail Lamp Circuit Board - Left |
| 40 | HVAC I Fuse | 10A | Air Temperature Actuator - Left, Air Temperature Actuator - Right, Console Mode Actuator - Auxiliary, Defrost Actuator, Mode Actuator, HVAC Control Module, Recirculation Actuator, Turn Signal/Multifunction Switch |
| 41 | FR TRN Fuse | 10A | Park/Turn Signal Lamp - RF |
| 42 | RADIO Fuse | 15A | Digital Radio Receiver, Radio |
| 43 | TRLR PRK Fuse | 10A | Trailer Connector |
| 44 | RR TRN | 10A | Front Passenger Door Module (FPDM), Instrument panel Cluster (IPC), Marker Lamp - RF, Park/Turn Signal lamp - RF, Tail Lamp Circuit Board - Right |
| 45 | - | - | Not Used |
| 46 | AUX PWR 1 Fuse | 20A | Auxiliary Power Outlet - Front, Auxiliary Power Outlet - Front, Auxiliary Power Outlet - Rear |
| 47 | - | - | Not Used |
| 48 | IGN 0 Fuse | 10A | Automatic Transmission, Automatic Transmission Shift Lock Actuator, Engine Control Module (ECM), Powertrain Control Module (PCM), Theft Deterrent Control Module |
| 49 | 4WD | 15A | Air Suspension Compressor Assembly |
| 50 | TBC 1G Fuse | 3A | Body Control Module (BCM) |
| 51 | FL TRN | 10A | Park/Turn Signal Lamp - LF |
| 52 | BRK Fuse | 10A | Electronic Brake Control Module (EBCM) |
| 53 | TBC 4 Fuse | 10A | Body Control Module (BCM) |
