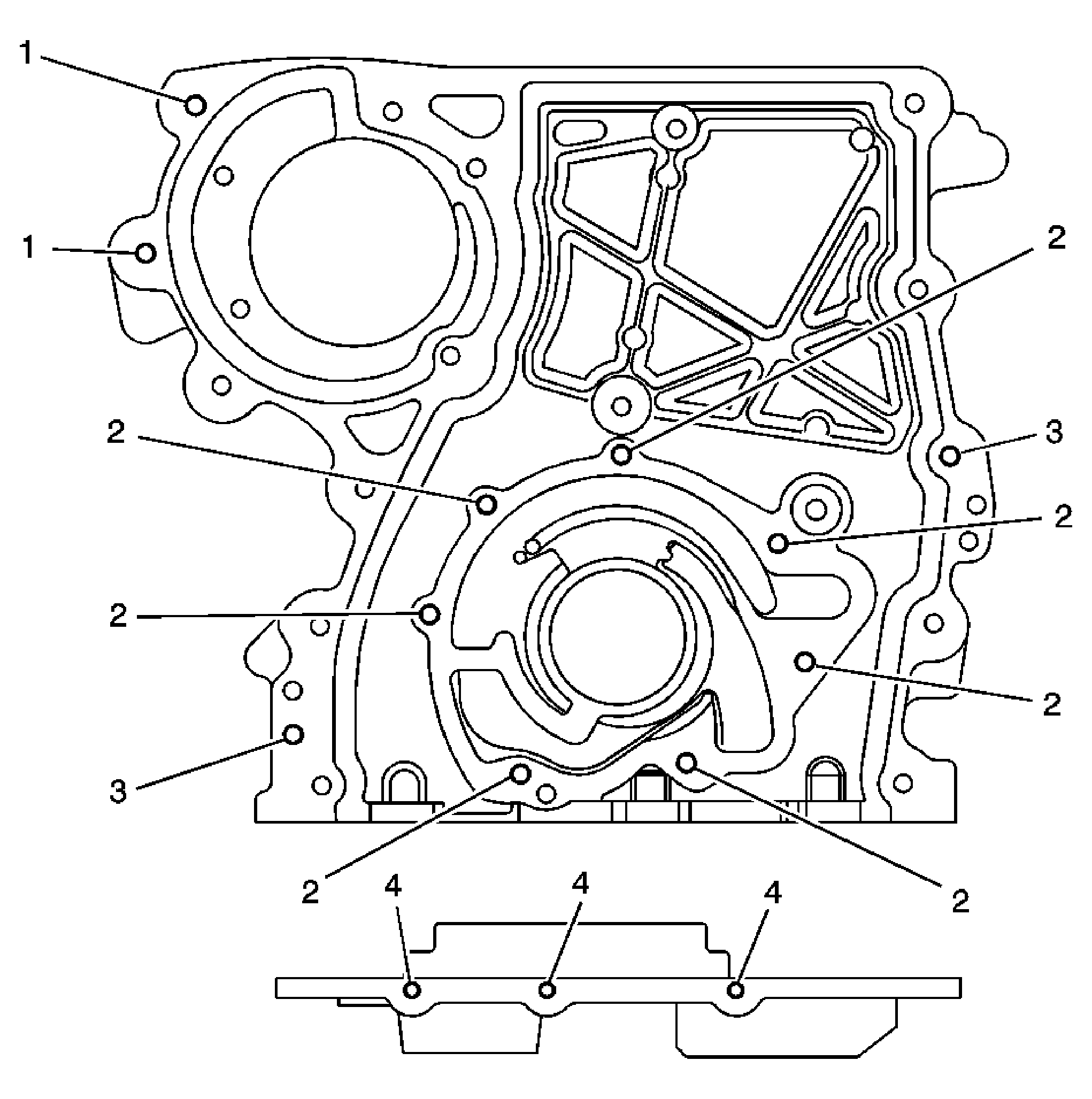

Engine Front Cover
Engine Front Cover
| Service Hole Location | Thread Size | Drill | Counterbore Tool | Stop Collar | Tap | Driver | Insert | Drill Depth (Max) | Tap Depth (Min) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | M 6 x 1 | n/a | n/a | n/a | n/a | n/a | n/a | 30 | 1.182 | 26 | 1.024 |
| 2 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | 16.5 | 0.65 | 13 | 0.512 |
| 3 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | THRU | THRU | ||
| 4 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | 16.5 | 0.65 | 13 | 0.512 |
| 5 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | 16.5 | 0.65 | 13 | 0.512 |
| 6 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | 16.5 | 0.65 | 13 | 0.512 |
| 7 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | 17 | 0.669 | 14 | 0.551 |
| 8 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | 17 | 0.669 | 14 | 0.551 |
| 9 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | 17 | 0.669 | 14 | 0.551 |
| 10 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | 16.5 | 0.65 | 13 | 0.512 |
| 11 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 414 | THRU | THRU | ||
| 12 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | 16.5 | 0.65 | 13 | 0.512 |
| 13 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | 16.5 | 0.65 | 13 | 0.512 |
| 14 | M 6 x 1 | n/a | n/a | n/a | n/a | n/a | n/a | 30 | 1.182 | 26 | 1.024 |
