Heated oxygen sensor element (271): B284

front heated oxygen sensor

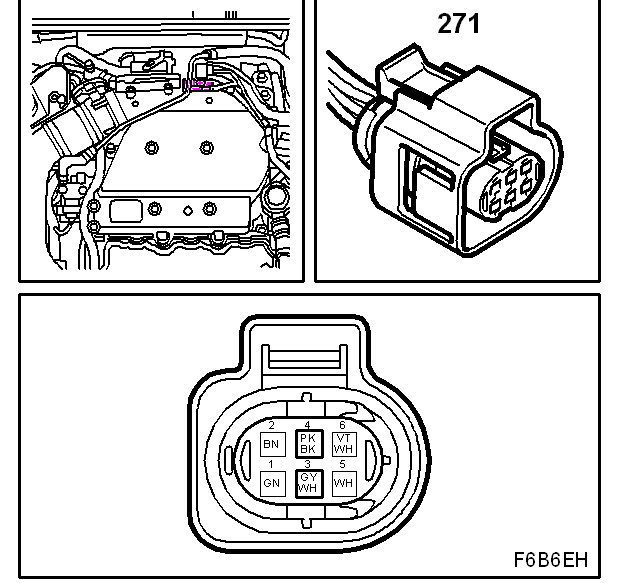

Fig 1: Identifying Heated Oxygen Sensor Element For Front Heated Oxygen Sensor (B284) (271)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

rear heated oxygen sensor

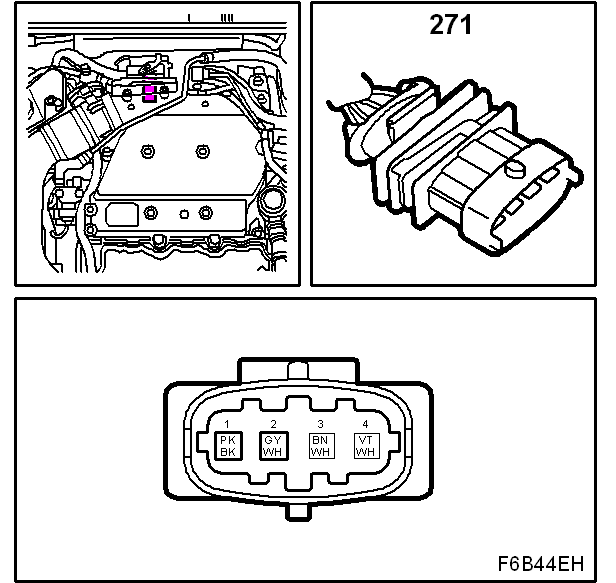

Fig 2: Identifying Heated Oxygen Sensor Element For Rear Heated Oxygen Sensor (B284) (271)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
