TRIONIC T8 Fuel Control System
›
Component Locator
›
Intake air temperature sensor (407)
›
B284
Intake air temperature sensor (407): B284
integrated in the intake air sensor 688

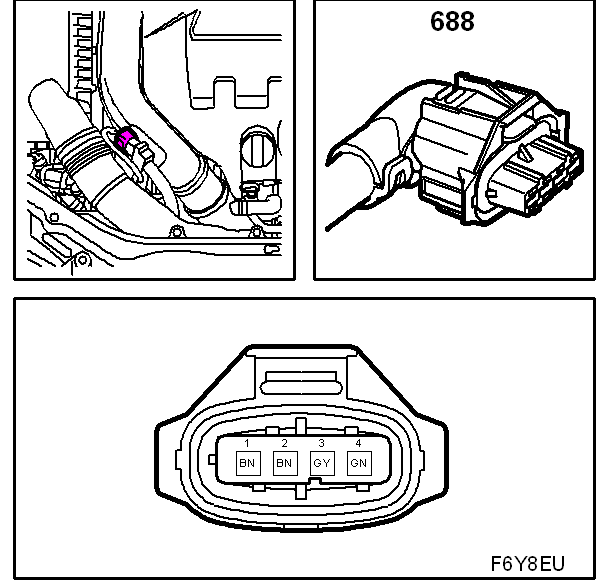

Fig 1: Identifying Intake Air Temperature Sensor (B284)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
