Body Control Module (707)
Body Control Module (707)
Location:
in the dashboard electrical distribution unit

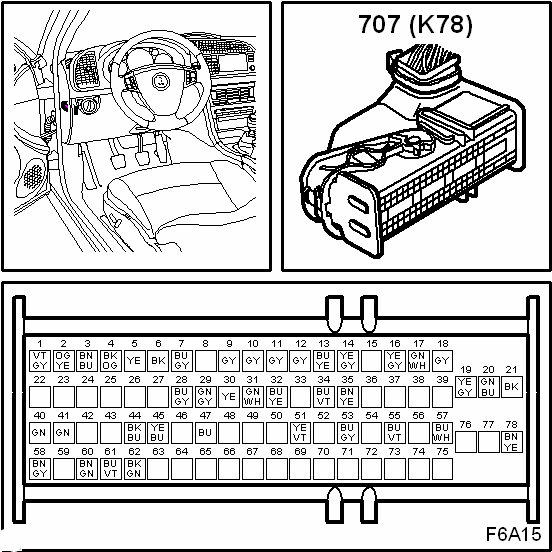

Fig 1: Identifying Body Control Module (707)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
