Starter motor, B207: Notes

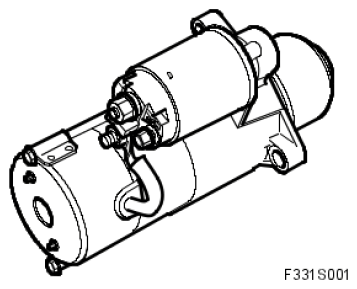

Fig 1: Identifying Starter Motor, B207

Courtesy of SAAB-SCANIA OF AMERICA, INC.

STARTER MOTOR SPECIFICATION

Type designation		Delco
Power	kW	1.8
No. of teeth on starter motor pinion		11
Number of teeth on ring gear		135
Ratio engine/starter motor		12.5:1
