Engine Management System MOTRONIC E9
›
Component Locator
›
Grounding point G7R
›
Notes
Grounding point G7R: Notes

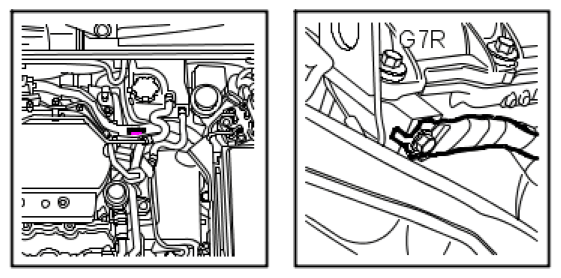

Fig 1: Identifying Grounding Point G7R
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Location:
On the rear cylinder bank toward the gearbox side
