Installation Procedure

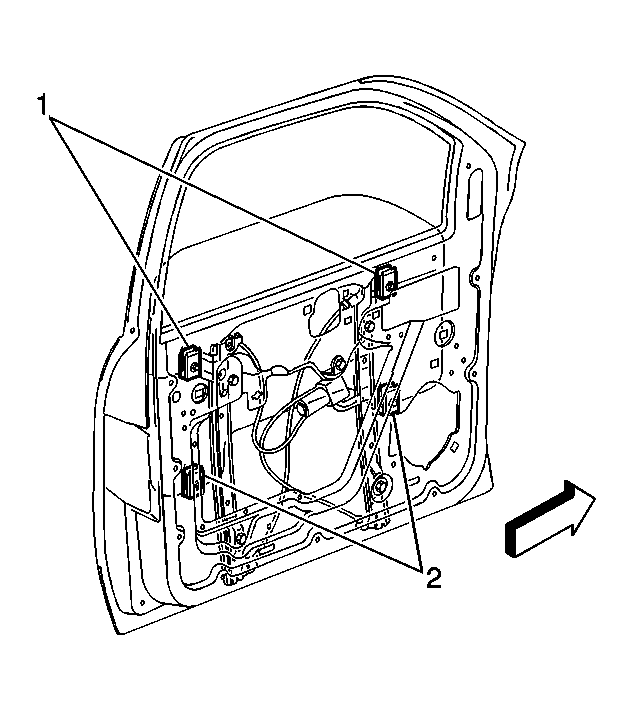

    Fig 1: Regulator In Remove/Load Position And Window Fully Secure Position (Front Door)
    GM723036Courtesy of GENERAL MOTORS CORP.
  1. Install the window to the door with the regulator adjusted to the remove/load position (2).
  2. Tilt the window forward and carefully guide the window into the rear run channel.
  3. Position the window to an upright position. Ensure that the window is seated into the run channels.
  4. Lower and position the window into the regulator clamps at the alignment marks previously made.
  5. Loosely tighten the regulator clamp bolts.
    6. IMPORTANT: Do not operate the regulator motor without supporting the window. Ensure that the window remains in the run channels when operating the regulator motor.
  6. Carefully move the regulator upward for short slow intervals, while ensuring that the window remains in the run channels.
  7. Position the window to a fully secure position (1) into the upper door weatherstrip.
    8. NOTE: Refer to Fastener Notice in Cautions and Notices.
  8. Tighten the 2 regulator clamp nuts.

    Tighten:  Tighten the nuts to 10 N.m (88 lb in).

  9. Install the outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
  10. Install the water deflector. Refer to Water Deflector Replacement - Front Door .
  11. Install the door speaker. Refer to Speaker Replacement - Front Door in Entertainment.
  12. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
