Engine Controls Schematics

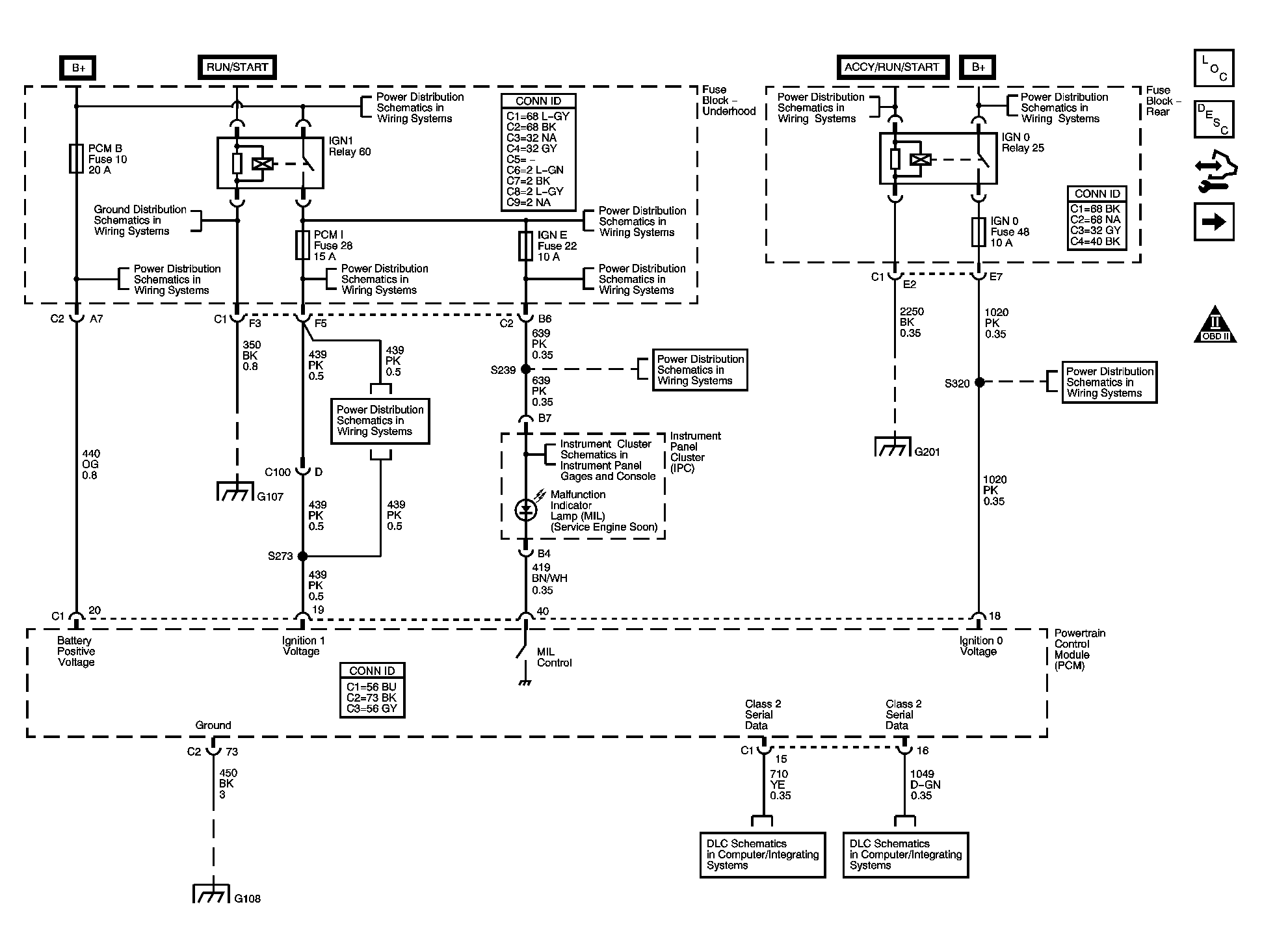

Fig 1: Module Power, Ground, Serial Data & MIL Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 2: Underhood Fuse Block - PWR/TRN Relay Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

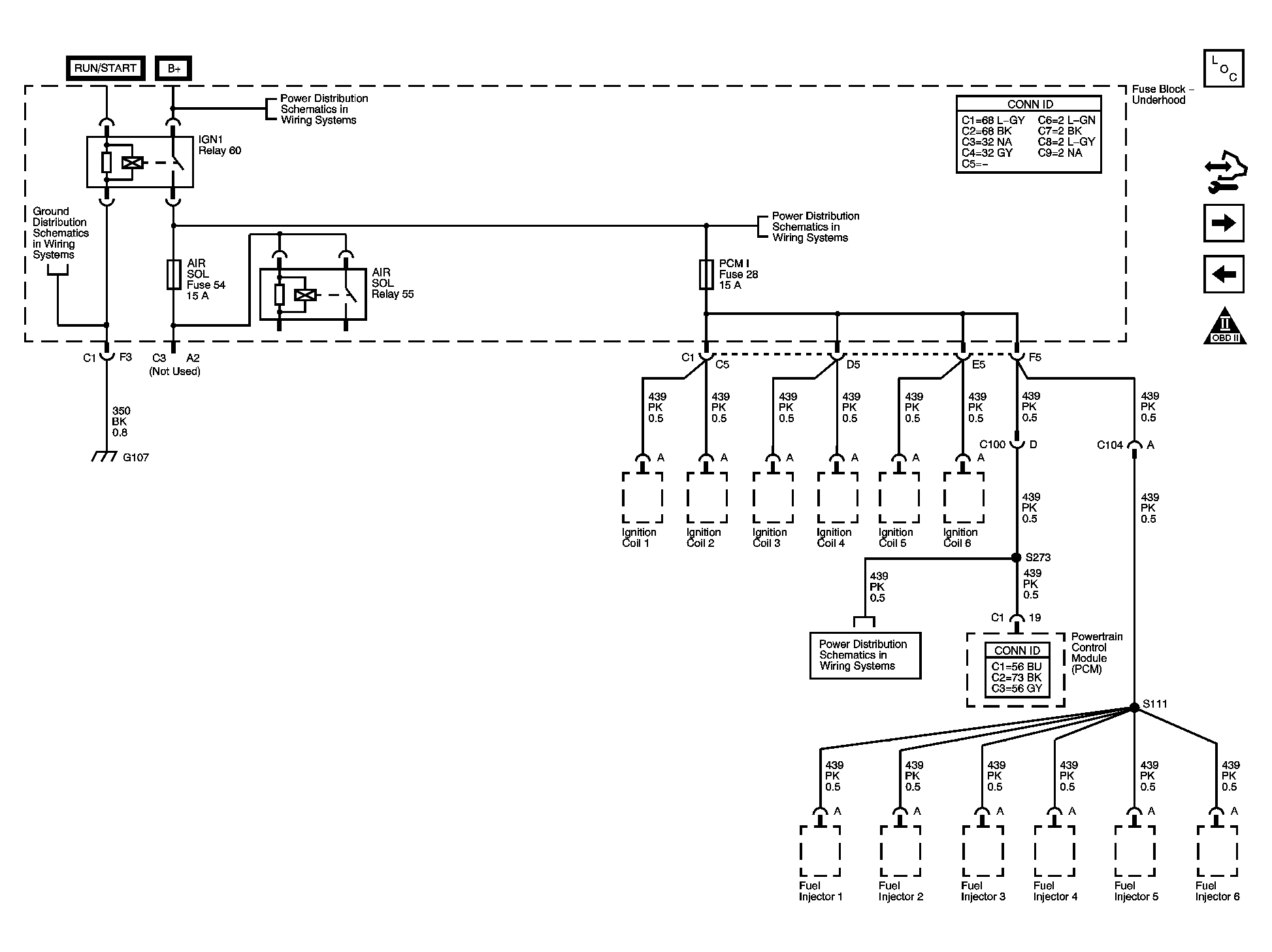

Fig 3: Underhood Fuse Block - IGN1 Relay Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

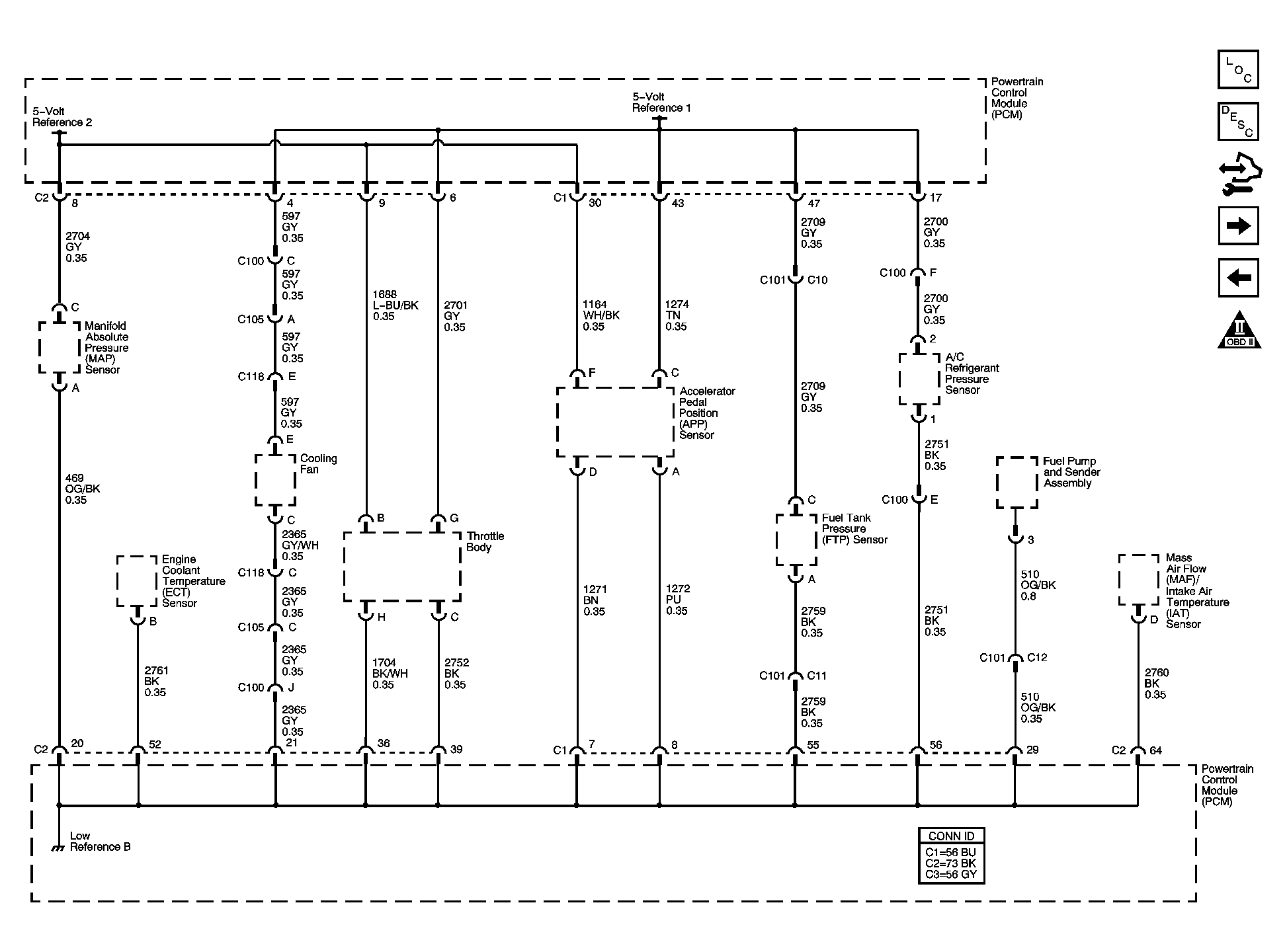

Fig 4: 5-Volt & Low Reference Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

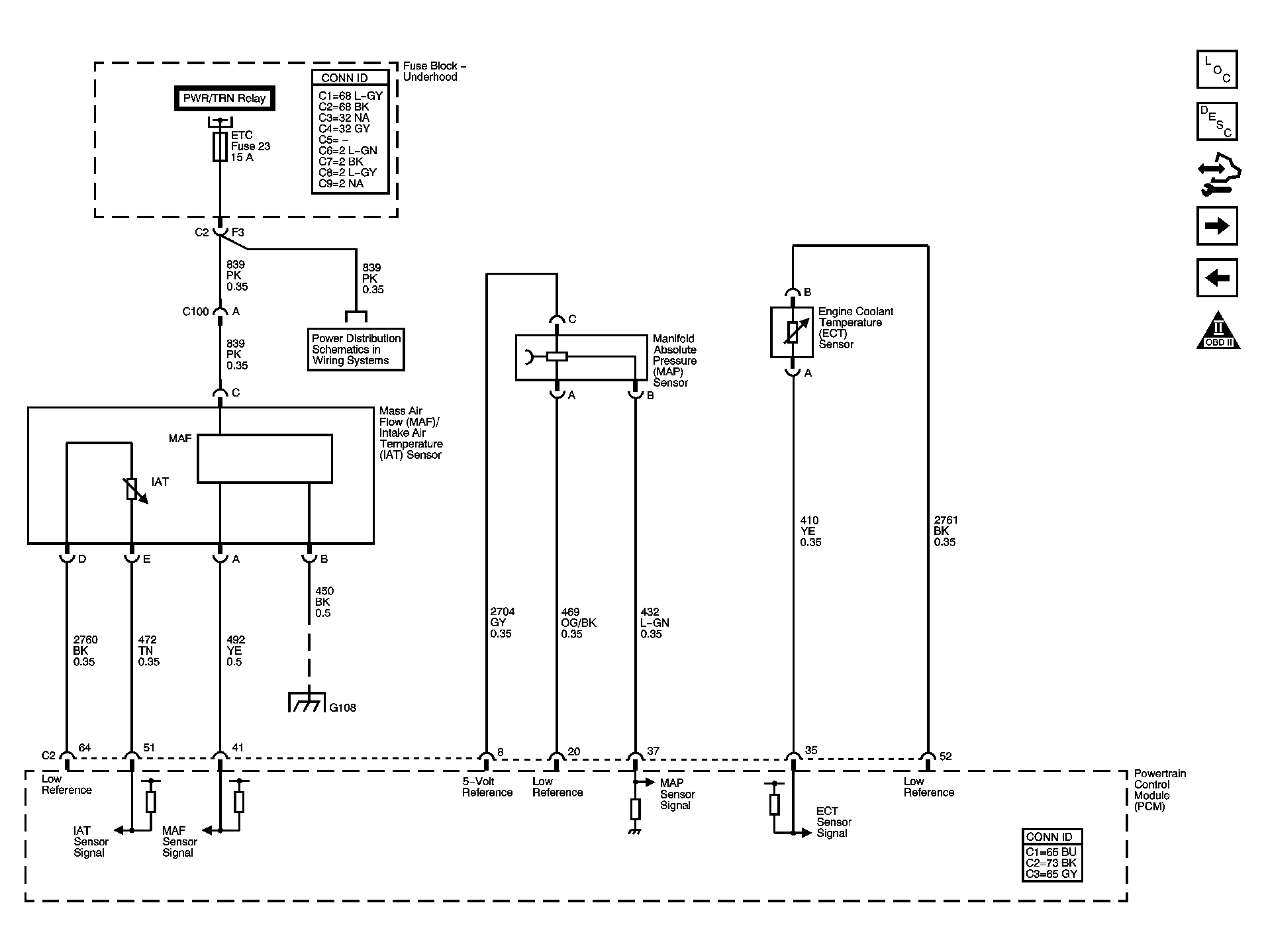

Fig 5: Engine Data Sensors - Pressure & Temperature Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

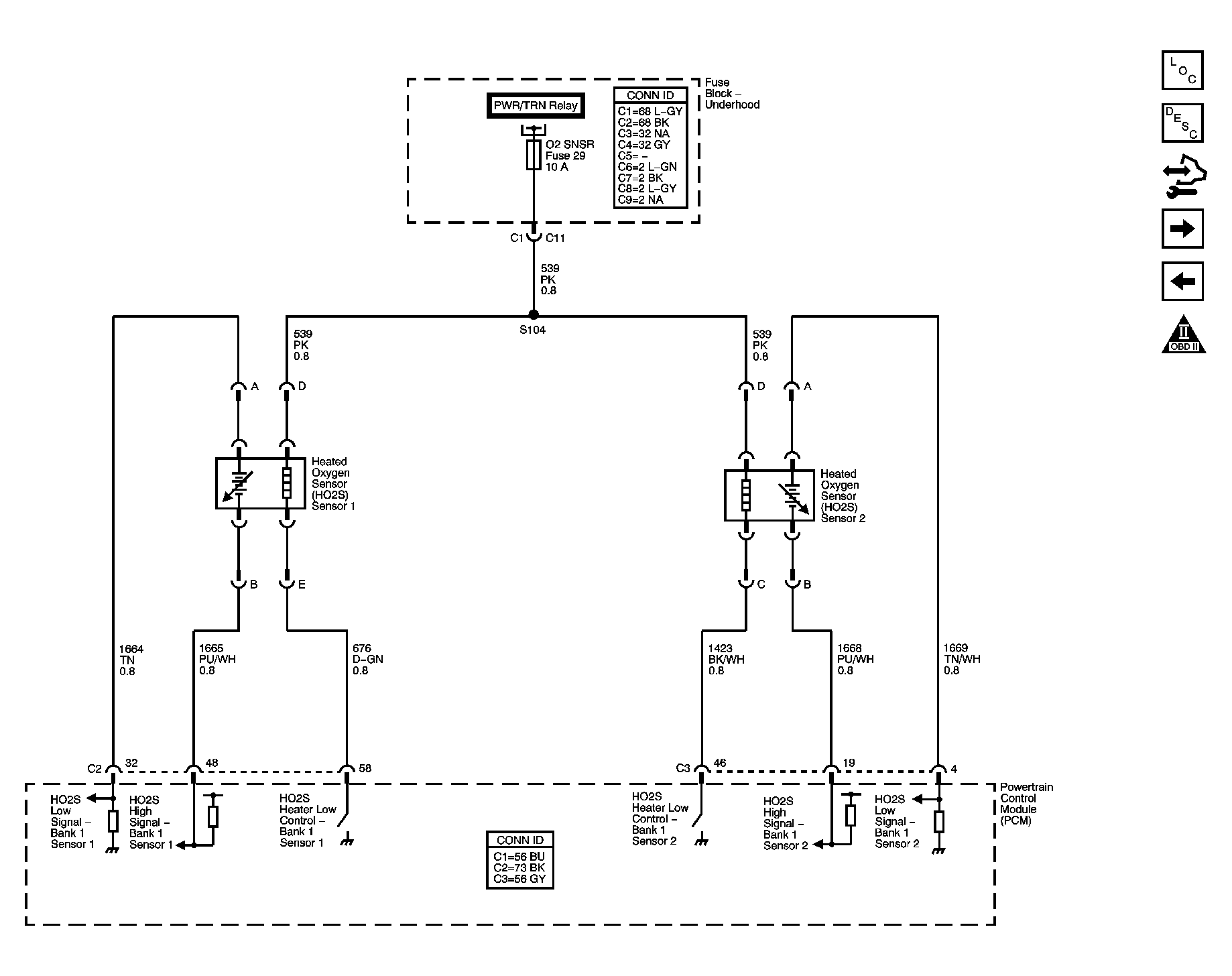

Fig 6: Engine Data Sensors - Oxygen Sensors Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

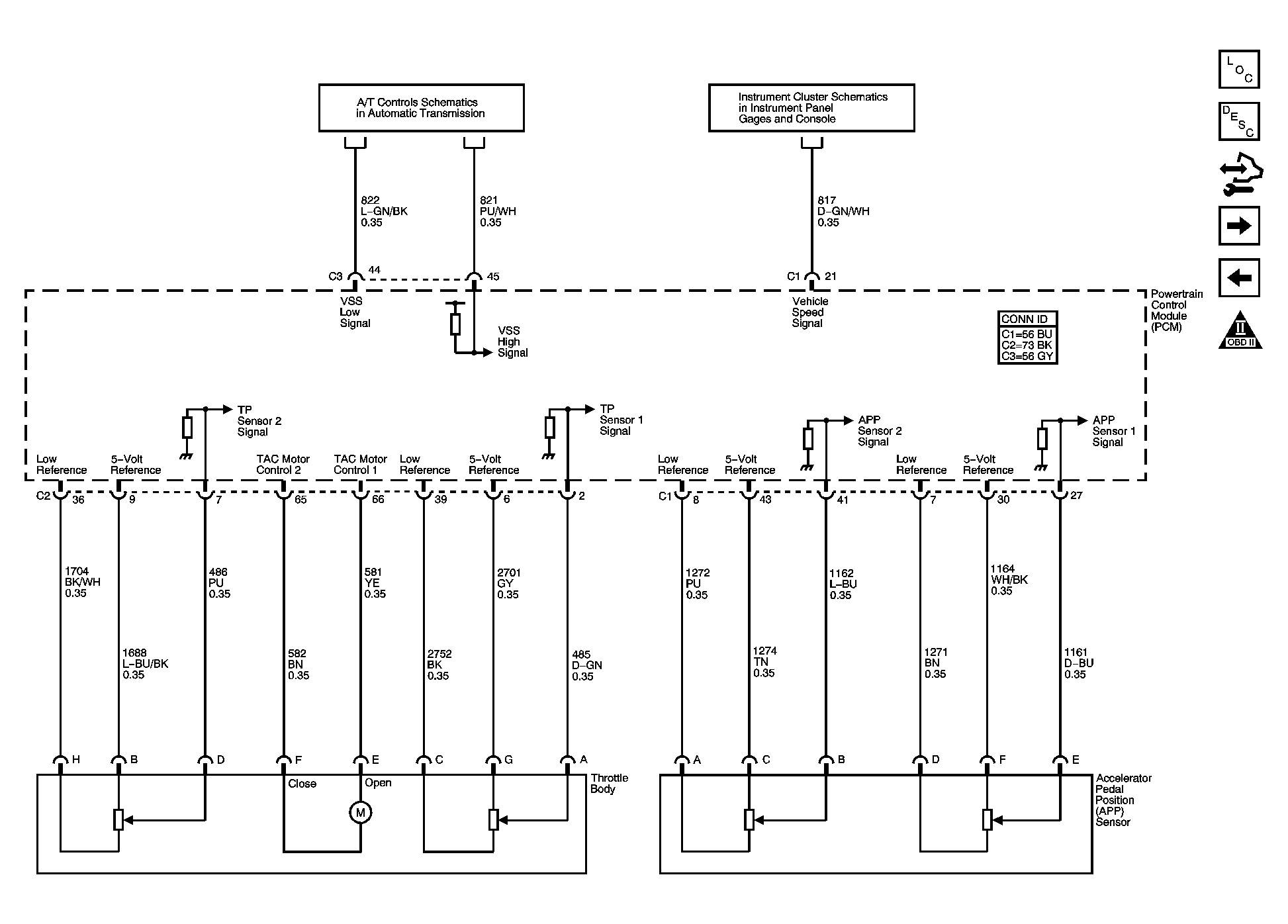

Fig 7: Engine Data Sensors - Throttle Actuator Controls and VSS Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

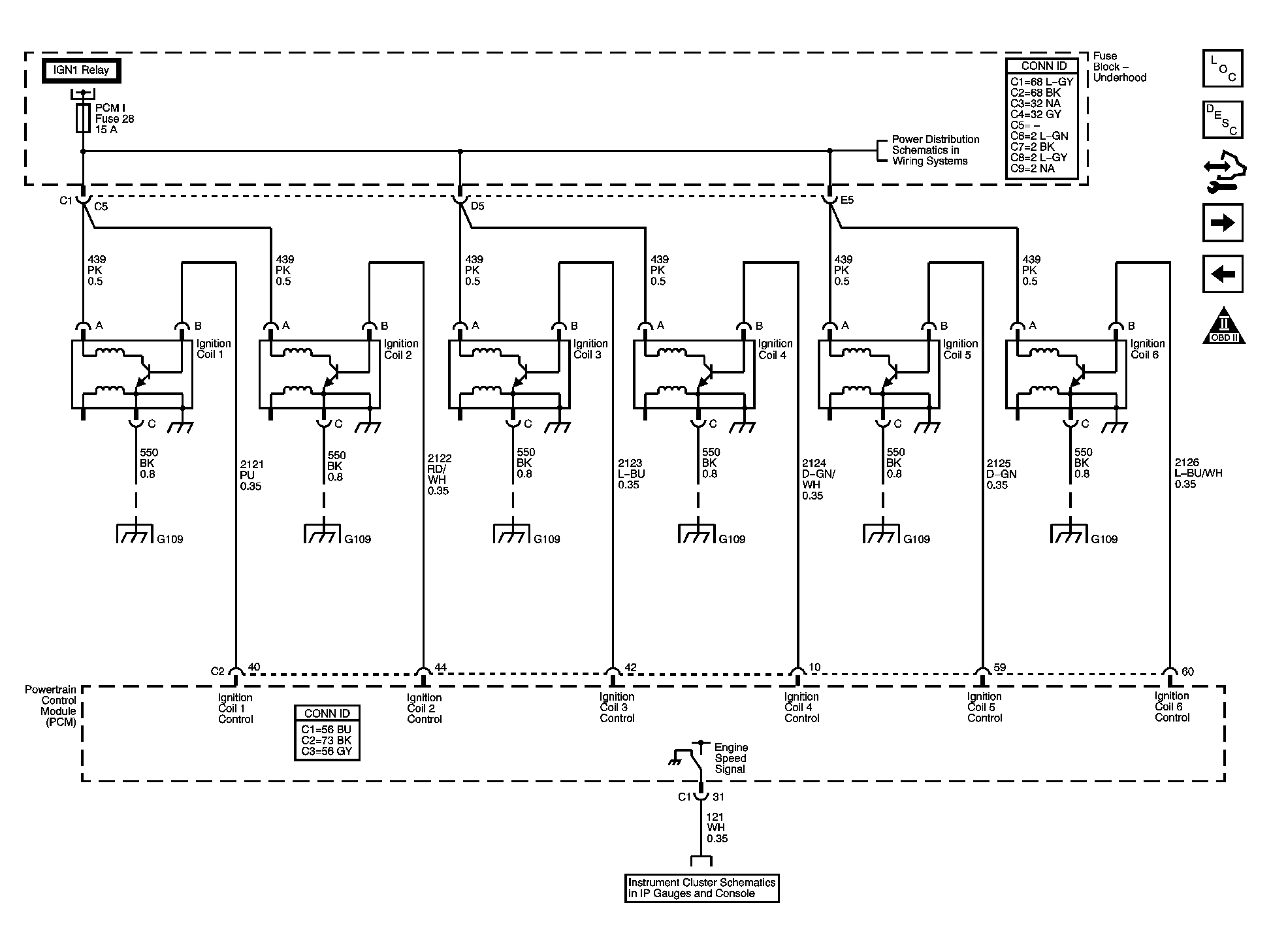

Fig 8: Ignition Controls - Ignition System Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

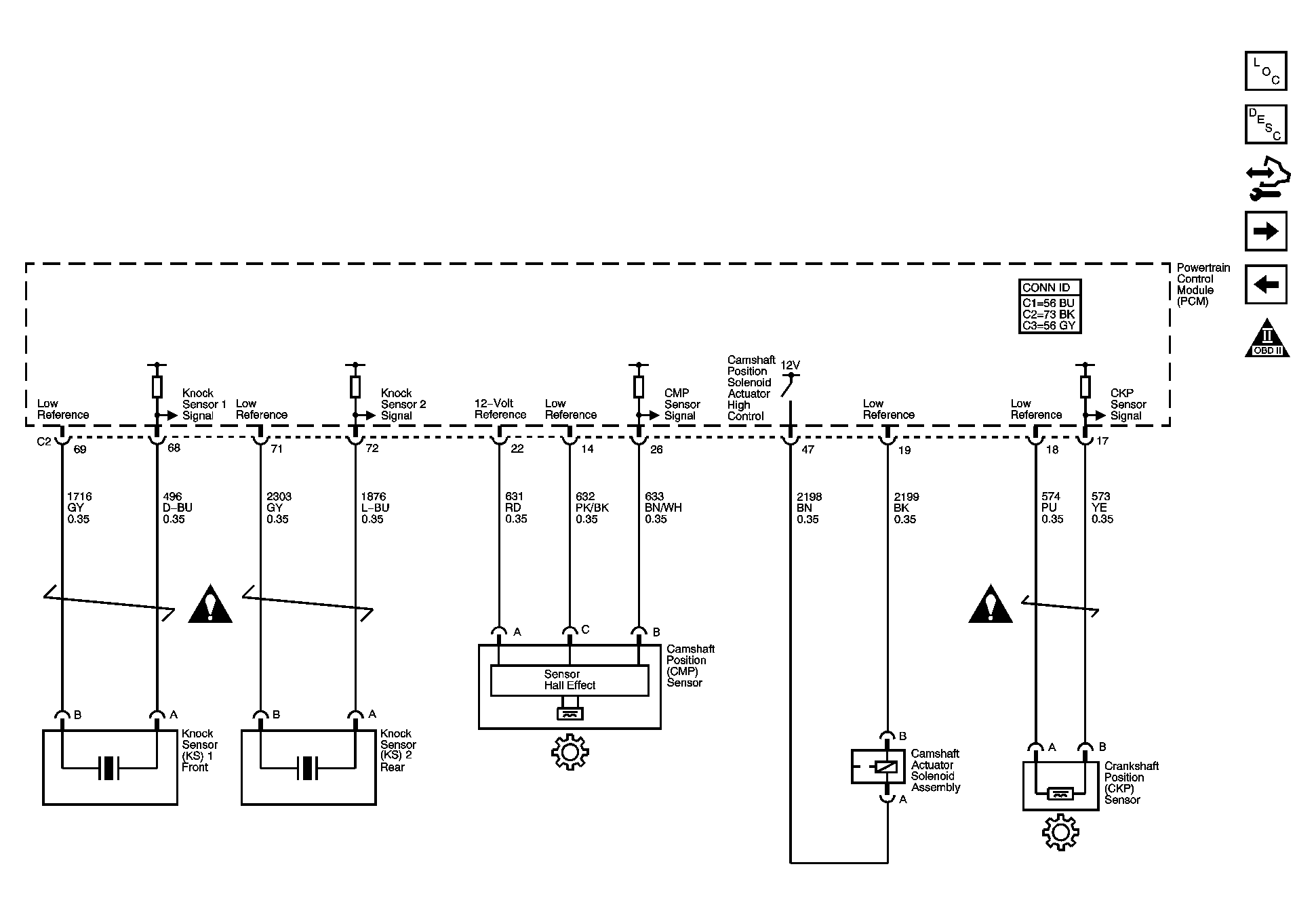

Fig 9: Ignition Controls - Sensors Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

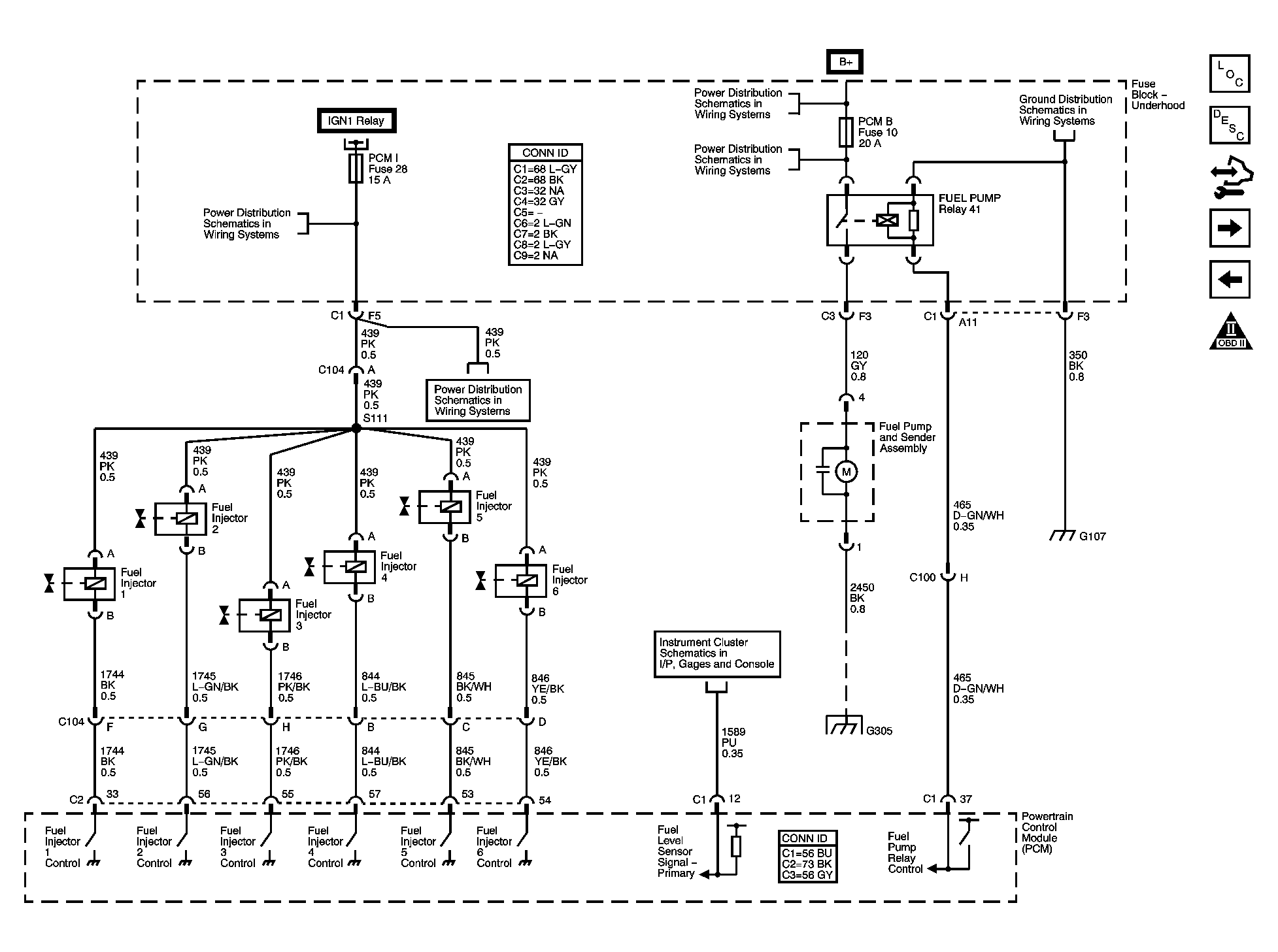

Fig 10: Fuel Controls - Fuel Pump Controls and Fuel Indicators Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

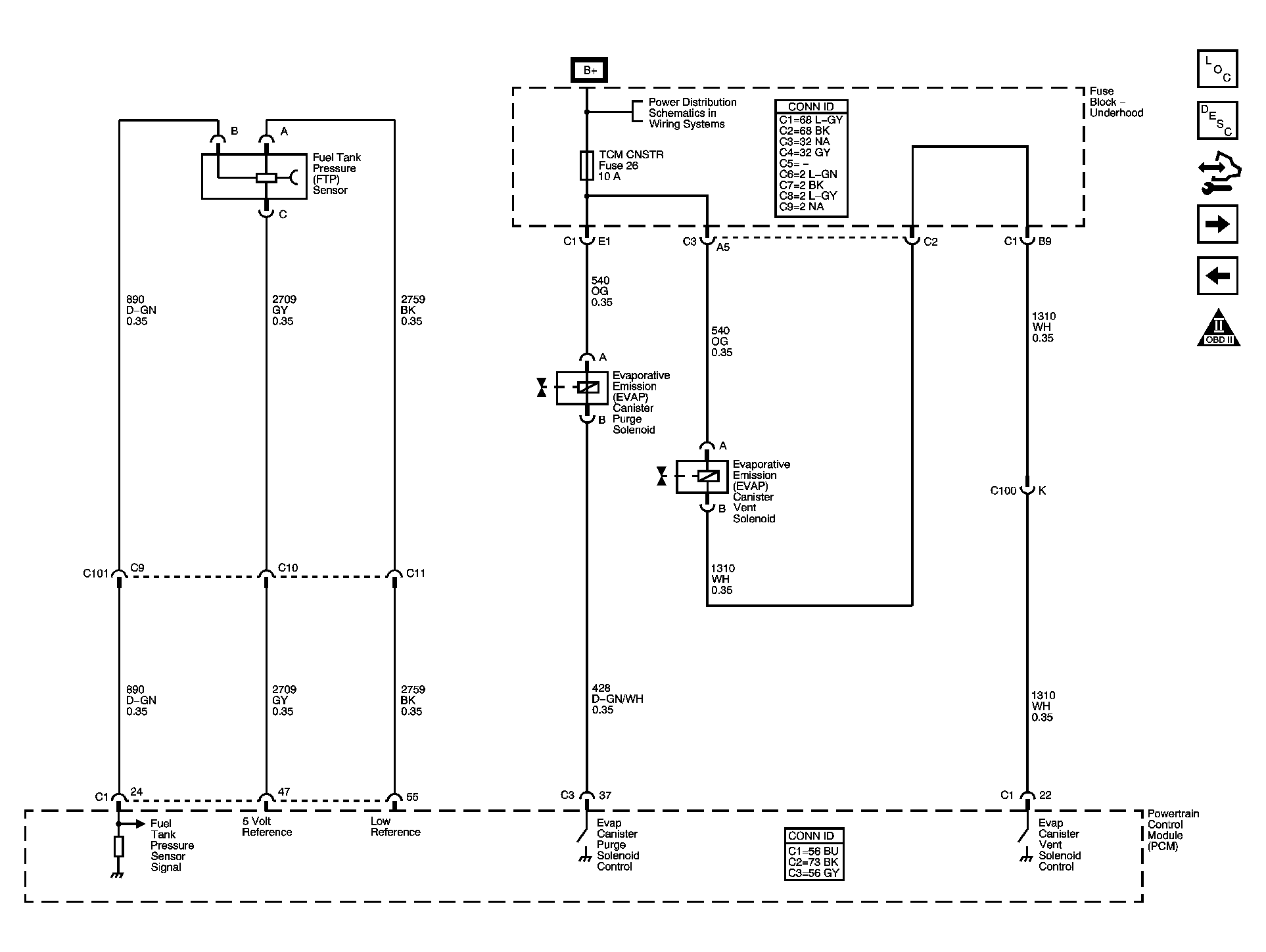

Fig 11: Fuel Controls - EVAP Controls Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 12: Device Controls - K18 Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

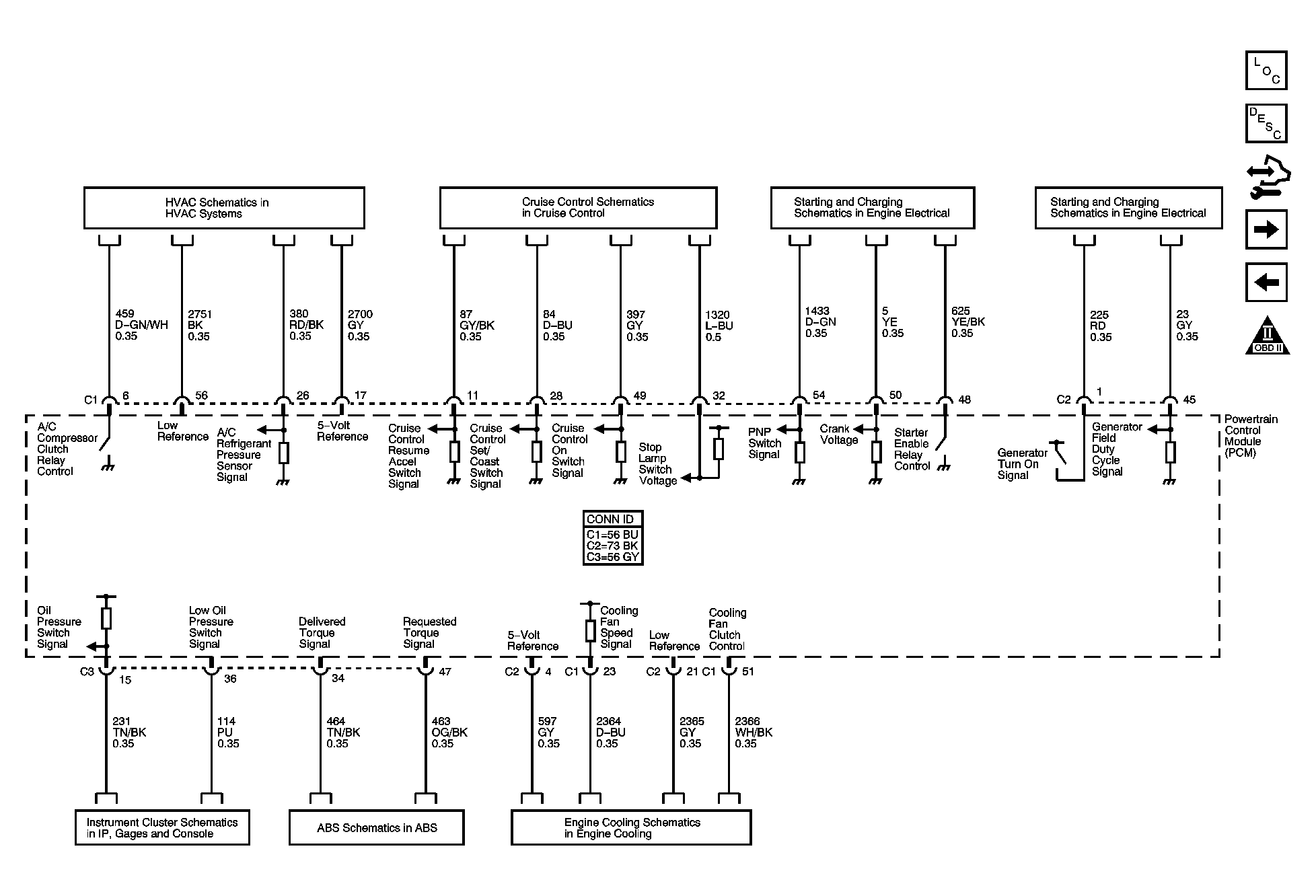

Fig 13: Controlled/Monitored Subsystem References Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

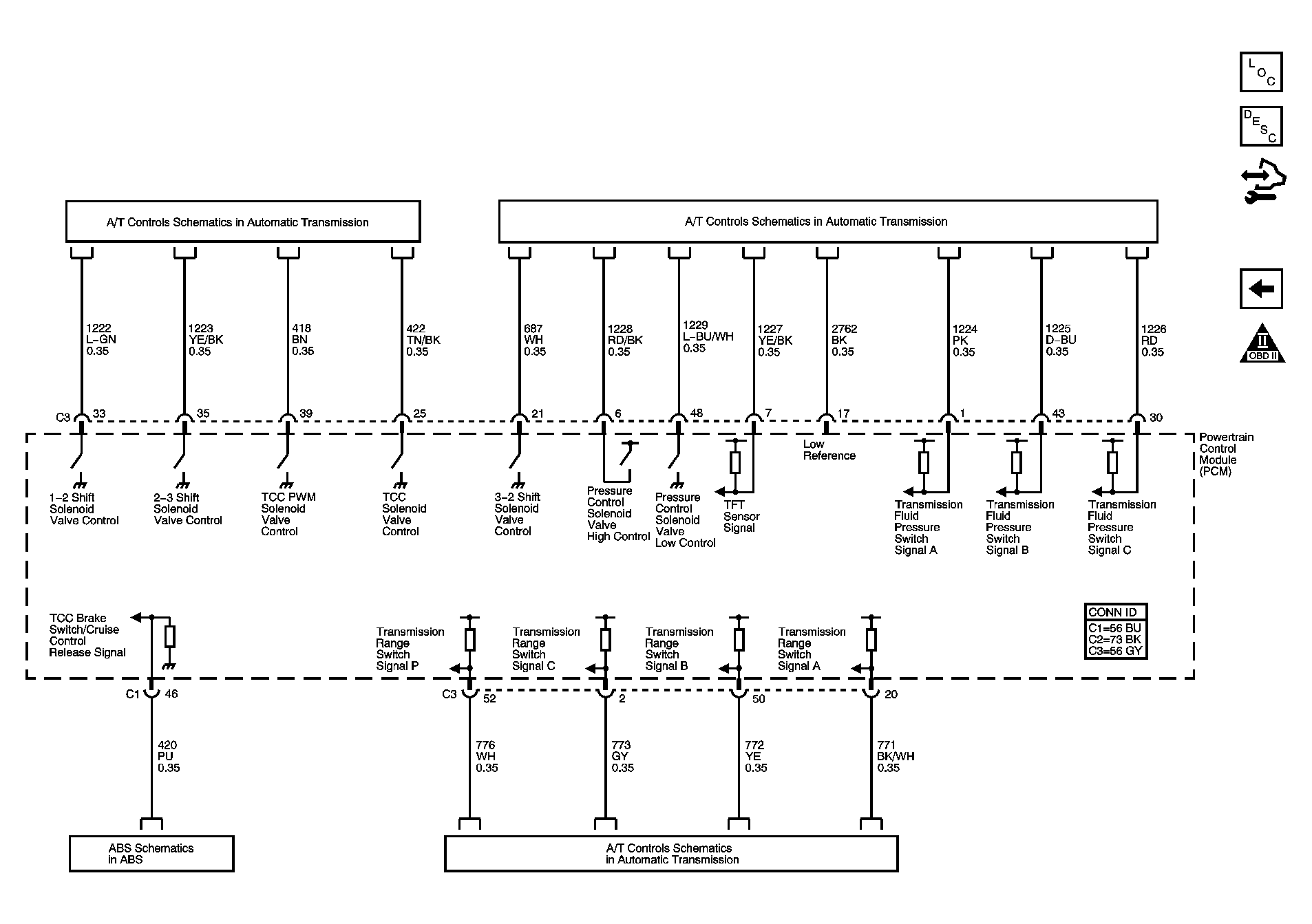

Fig 14: Transmission Control References - A/T Wiring Diagram

Courtesy of GENERAL MOTORS CORP.
