Door Control Module Schematics

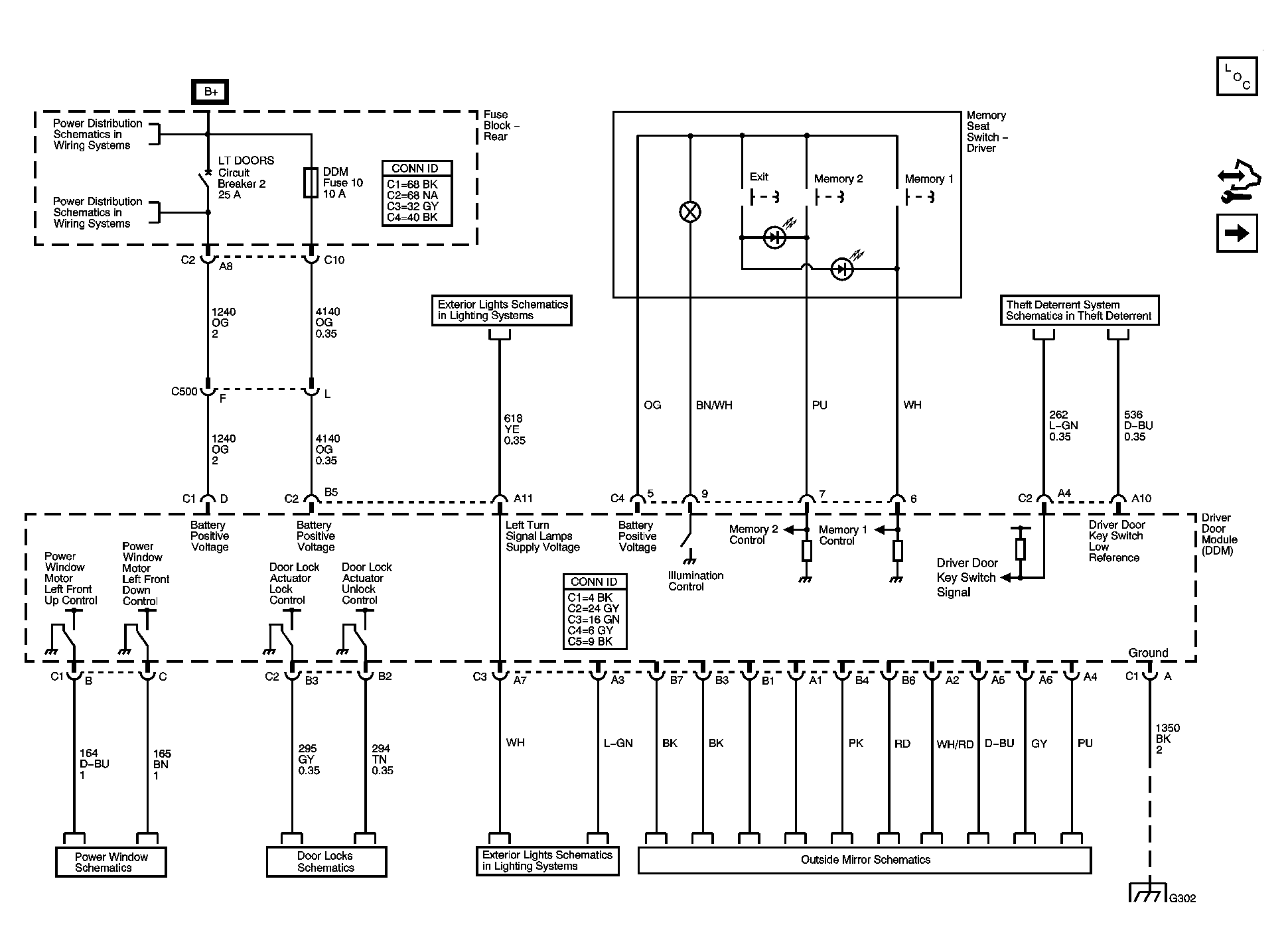

Fig 1: Power, Ground & Subsystem References Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 2: Serial Data & Subsystem References Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

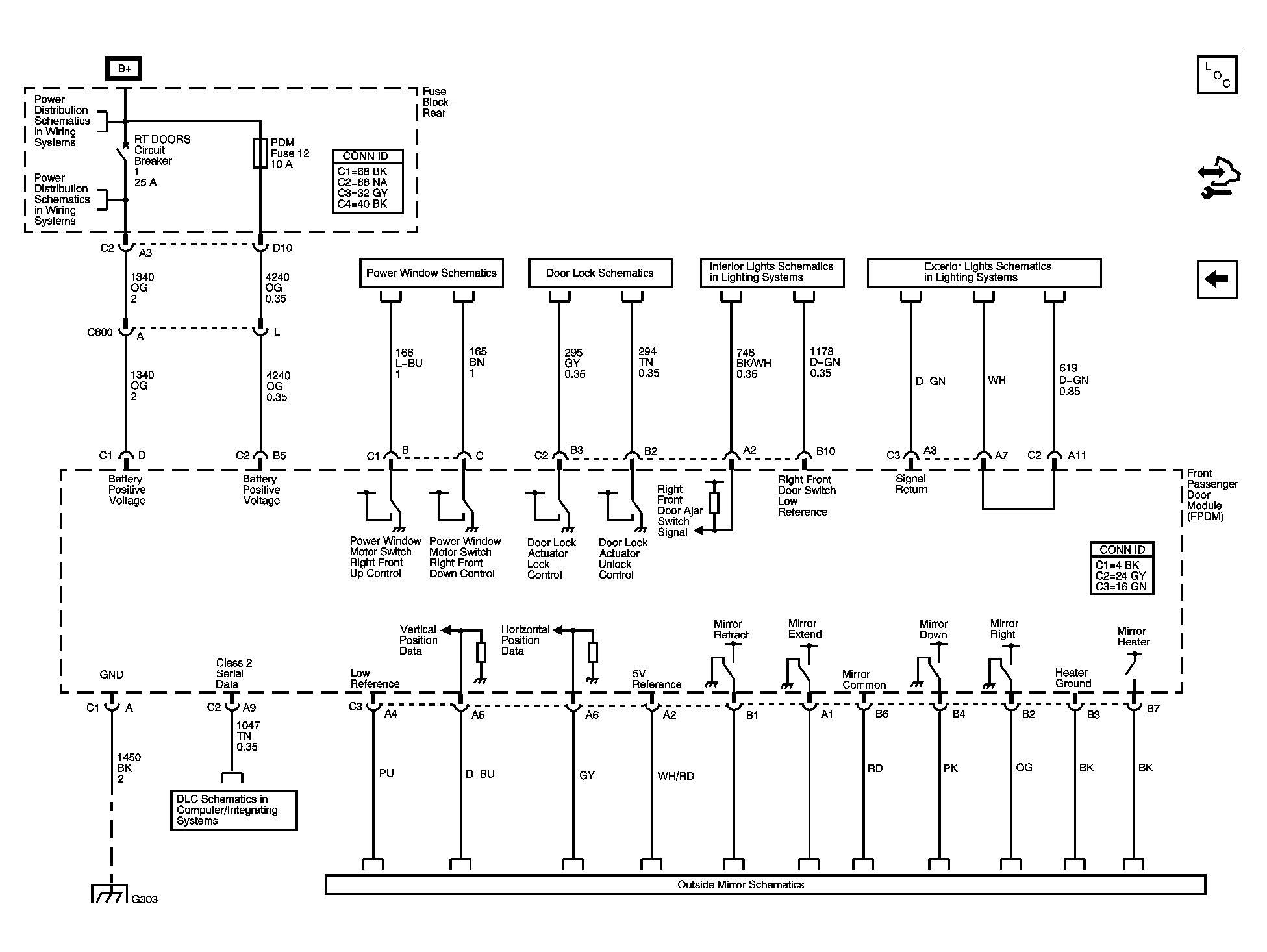

Fig 3: Front Passenger Door Module Wiring Diagram

Courtesy of GENERAL MOTORS CORP.
