Connector H33-4
Connector H33-4
Location:
under the right A-pillar

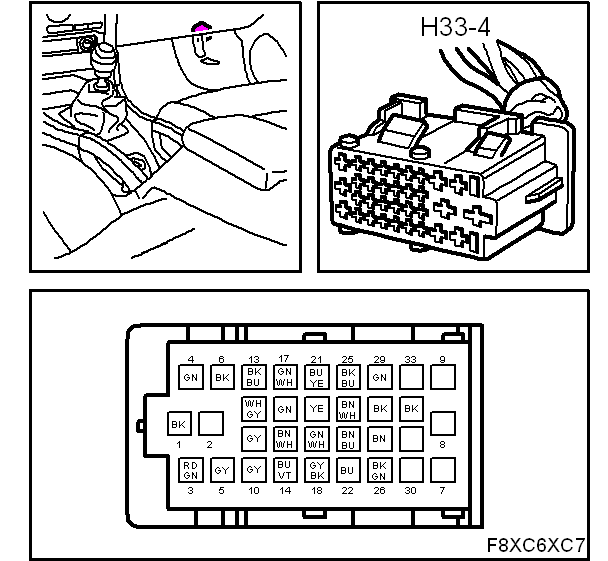

Fig 1: Identifying Connector H33-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
