Control Module, ONSTAR, VCIM (673)

WARNING: This page is about a different car, the 2007 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

K12

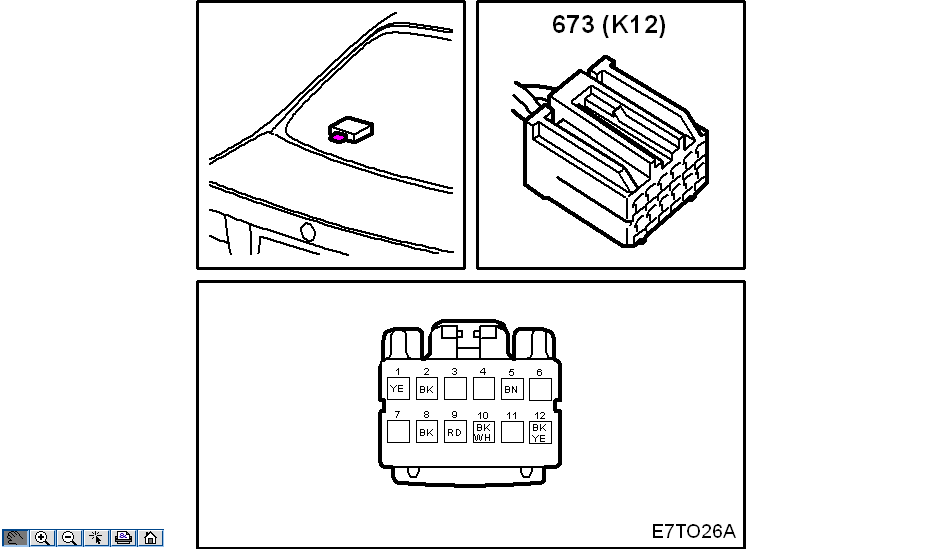

Fig 1: Identifying Control Module (K12)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16

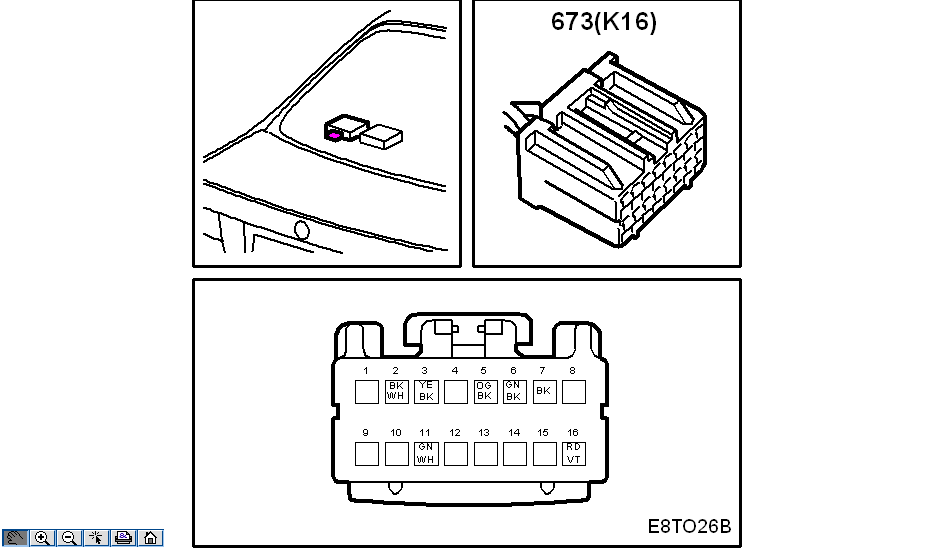

Fig 2: Identifying Control Module, (K16)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K12

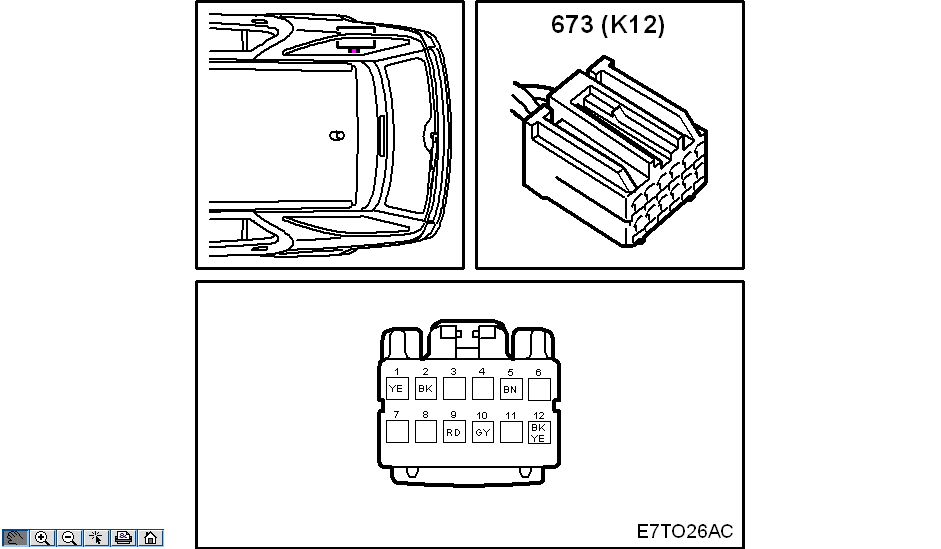

Fig 3: Identifying Control Module, (K12)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16

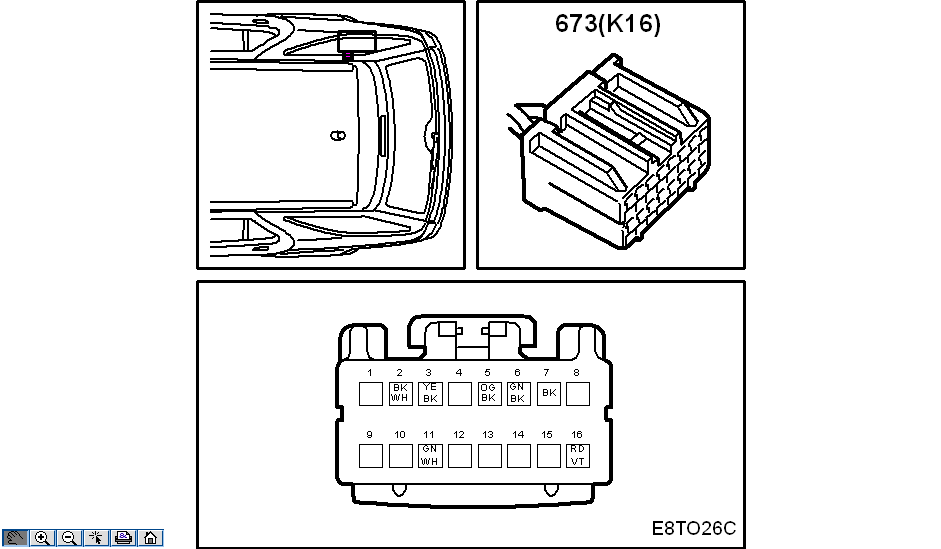

Fig 4: Identifying Control Module, (K16)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
