Connector H10-8
Connector H10-8
Location:
On engine next to upper intake manifold on gearbox side

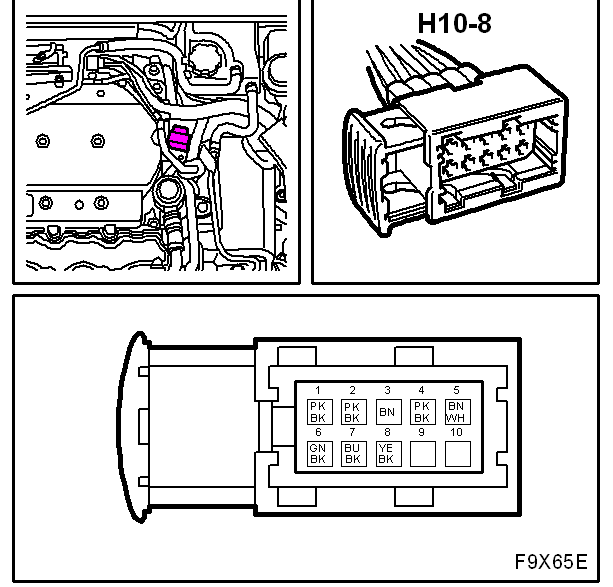

Fig 1: Identifying Connector H10-8 Location
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
