Charge Air Control Valve
›
To remove
To remove
Take off the rubber cap and unplug the connector.

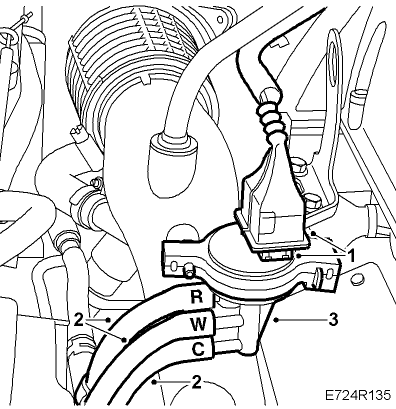

Fig 1: Illustration For Step 2-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Mark the hoses to the control valve and detach them.
Detach the valve from the expanding pin and metal bracket.
