Transmission Control Module (TCM), (Part 1/2): Notes

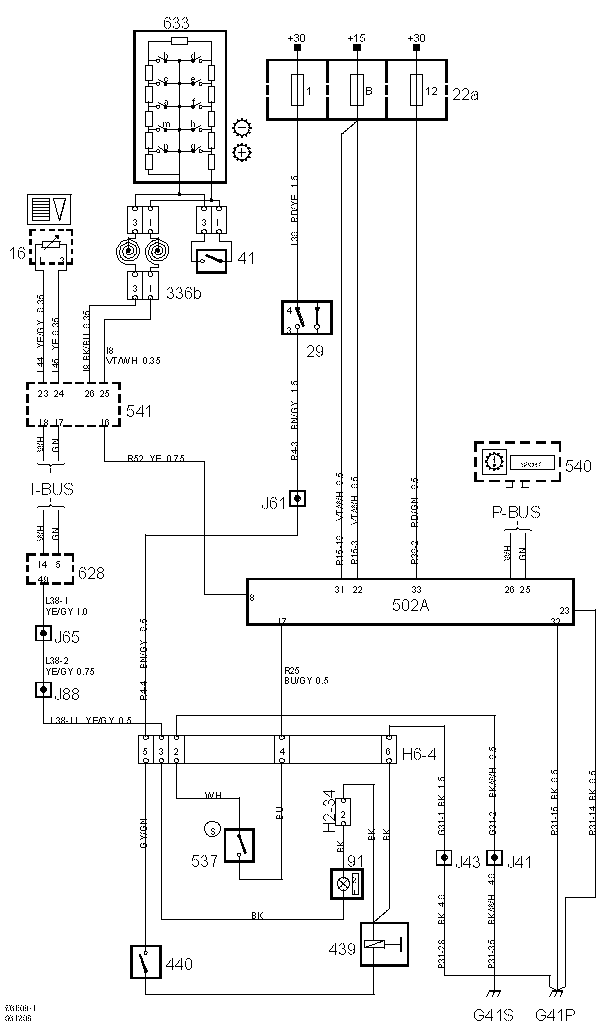

Fig 1: Transmission Control Module (TCM), (Part 1/2) Schematic

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Also see TRANSMISSION in appropriate System Wiring Diagrams for more information.
