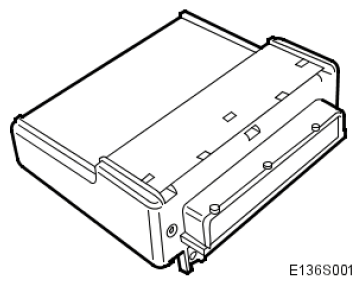

Control Module
CONTROL MODULE SPECIFICATIONS CHART
| Location | Above main relay board | |
| Number of pins | 70 | |
| Power supply (+B circuit) | Pin No. | 7 |
| Power supply (+15 circuit) | Pin No. | 64 |
| Power supply (+30 circuit) | Pin No. | 26 |
| Power supply (+54 circuit) | Pin No. | 31 |
| Power ground | Pin No. | 57 |
| Instrument BUS, I-BUS (+) | Pin No. | 14 |
| Instrument BUS, I-BUS (-) | Pin No. | 5 |
