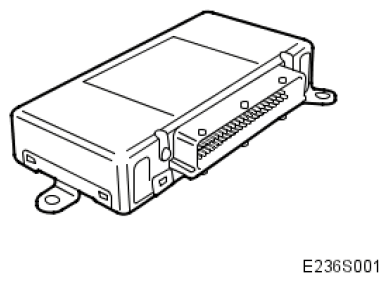

Control Module
CONTROL MODULE SPECIFICATIONS CHART
| Location | Under left-hand front seat, screwed on the floor | |
| Number of pins | 70 | |
| Power supply +30 | pin no. | 43 |
| Power supply +15, logic/key position | pin no. | 16 |
| Power supply +B, logic/key position | pin no. | 17 |
| Power ground | pin no. | 70 |
| Signal ground | pin no. | 37 |
| Instrument BUS, I-BUS (+) | pin no. | 38 |
| Instrument BUS, I-BUS (-) | pin no. | 15 |
