Saab
›
2007
›
9-5 4D Sedan, Standard
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Stabilizer System, Esp
›
Description & Operation
›
Control Module Inputs
Control Module Inputs

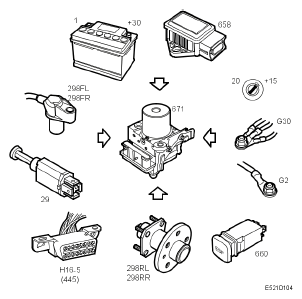

Fig 1: Identifying Control Module Inputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Power Supply +30
(1)
Power Supply +15
(2)
Ground (G30, G2)
Speed Sensor, Front Wheel
Speed Sensor, Rear Wheel
Brake Light Switch
Diagnostics Communication
ESP ON/OFF Switch
Steering Wheel Angle Sensor
(657)
Yaw Rate Sensor
(658)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
