Main Components

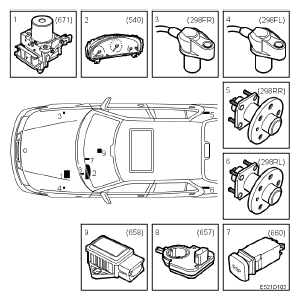

Fig 1: Identifying Main Components
G05041179Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. ESP control module (671)
  2. ESP OFF Indicator Lamp, TCS/ESP Indicator Lamp  (540)
  3. Wheel Speed Sensor, Front Right  (298Fr)
  4. Wheel Speed Sensor, Front Left  (298Fl)
  5. Wheel Speed Sensor, Rear Right  (298Rr)
  6. Wheel Speed Sensor, Rear Left  (298Rl)
  7. ESP ON/OFF Switch  (660)
  8. Steering Wheel Angle Sensor  (657)
  9. Yaw Rate Sensor  (658)
