To remove

  1. Raise the car and remove the wheel.
  2. Press the brake piston back using a pair of slip joint pliers.
    Fig 1: Illustration For Step 3
    G05042040Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the brake caliper and hang it up.
  4. Back off the parking brake shoe adjustment. It is accessible through a hole in the brake disc.
    Fig 2: Illustration For Steps 4-5
    G05042041Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the brake disc retaining bolt. Remove the brake disc.
  6. Remove any air deflector.

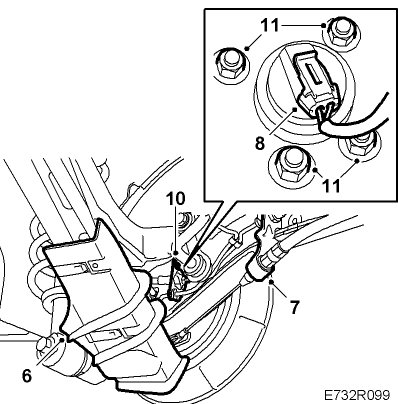

    Fig 3: Illustration For Steps 6-8, 10-11
    G05042042Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the bolt securing the handbrake cable bracket.
  8. Unplug the connector from the wheel sensors
  9. Detach the wheel sensor cable from the holder.
  10. Remove the mounting for the wheel sensor cable and brake pipe (2 nuts).
  11. Remove the wheel hub nuts. Use a long 15mm socket with 3/8 drive, part no. 30 34 444 and extension with ball fitting.
  12. Remove the wheel hub from the brake shield. Allow the brake shield and parking brake unit to remain hanging in the wiring. Keep track of the spacer.
