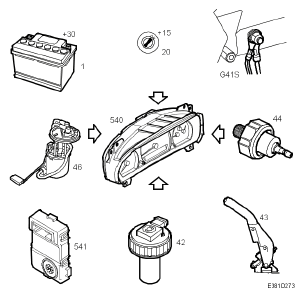

Control module inputs
- Indicator lamp xenon light system from the headlamp control module (682 FL/FR)
- Warning lamp, charging (2), see Warning And Indicator Lamps .
- Lights-on indicator lamp from lights switch (10), see Warning And Indicator Lamps .
- Main beam indicator lamp from main headlamp relay (8a), see Warning And Indicator Lamps .
- Indicator lamp for heater on, from the SID control module (541)
- Battery Voltage (+30) (1). See appropriate POWER DISTRIBUTION wiring diagram.
- Battery Voltage (+15) (20). See appropriate POWER DISTRIBUTION wiring diagram.
- Ground connection (G41S)
- Oil pressure warning lamp from oil pressure sensor (44), see Warning And Indicator Lamps .
- Brake fluid level warning lamp from brake fluid reservoir (42), see Warning And Indicator Lamps .
- Warning lamp, handbrake (43), see Warning And Indicator Lamps .
- Fuel level from fuel level sensor (46), see Warning And Indicator Lamps .
- Low fuel level indicator lamp (46), see Warning And Indicator Lamps .
