Head Unit: Refitting

WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Check that the retaining catches on the head unit are not damaged (bent inwards).
  1. Plug in the unit's connectors.

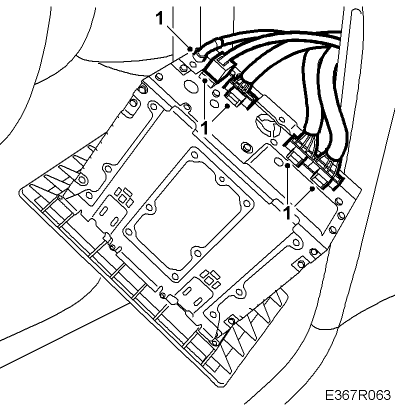

    Fig 1: Identifying Head Unit Connectors
    G05038340Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Push the head unit into the space provided for it in the center console until a click is heard.

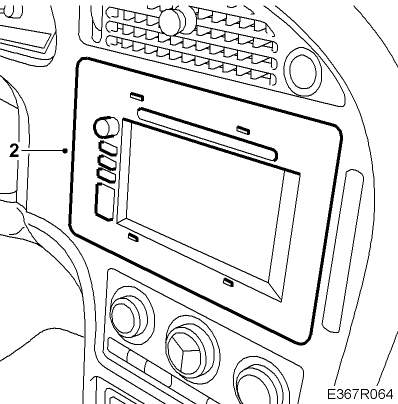

    Fig 2: Installing Head Unit Into Centre Console
    G05038341Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. While Tech 2 is connected and communicating with the audio system, select "Programming " from the system menu.

    The text "Marriage/Divorce " is displayed.

  4. Press "ENTER".
  5. Select MARRIED with the change button and press "OK".
    • "MARRIED " must be selected when installing a head unit into a Saab 9-5.
  6. "TheftLock is activated" disappears from the unit's screen and the sound returns after a short delay.
  7. Carry out spare parts programming using Tech 2.
WARNING: The CD player in the head unit is a Class 1 laser product.
  • The CD player in the head unit should only be serviced and repaired by a qualified technician.
  • If the casing on the head unit is damaged, there could be laser radiation with risk of injury.
