Remote Function Schematics

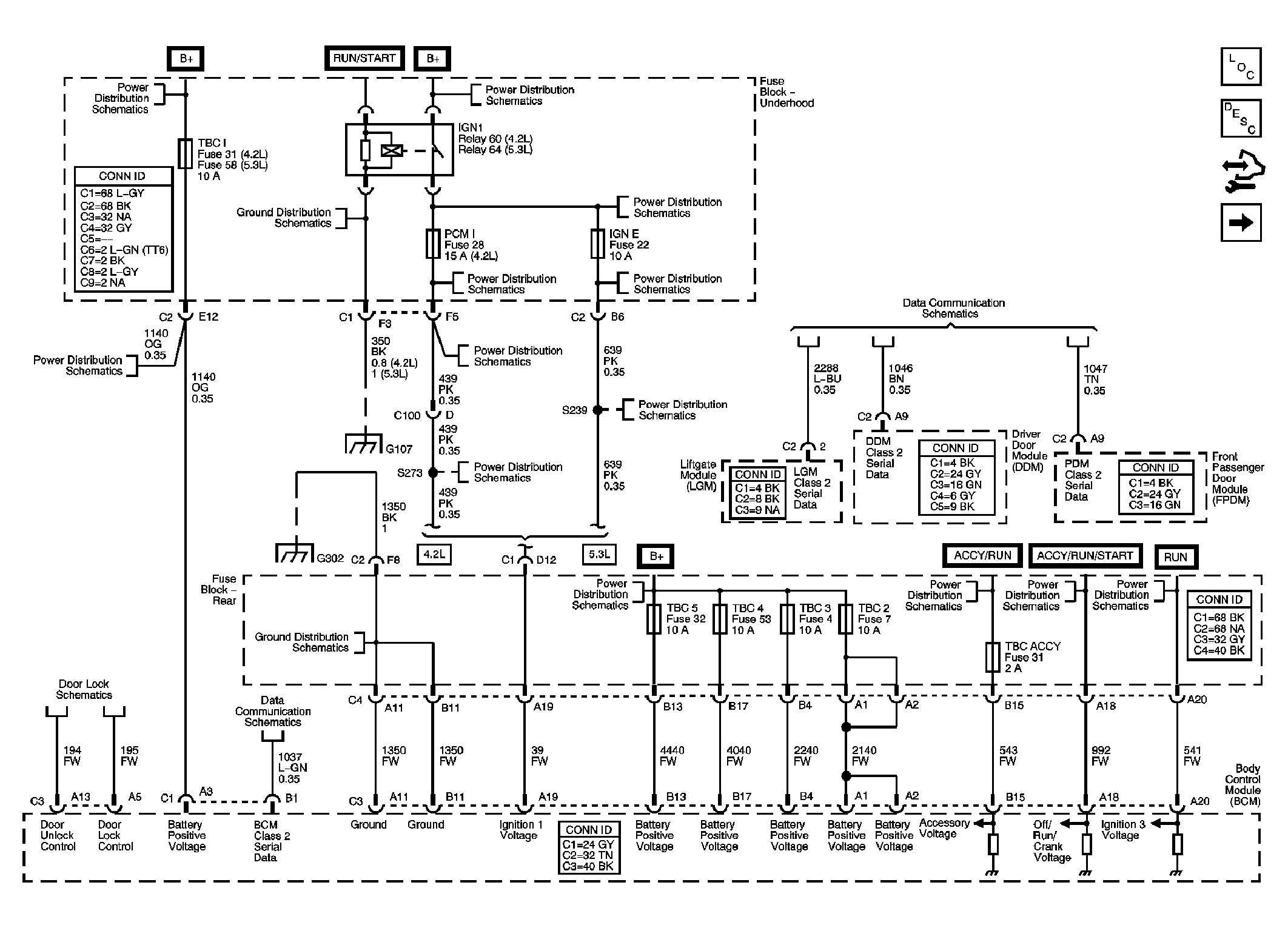

Fig 1: Keyless Entry
GM1749227Courtesy of GENERAL MOTORS CORP.
Fig 2: Garage Door Opener - UG1
GM1749229Courtesy of GENERAL MOTORS CORP.
