Door Control Module Schematics

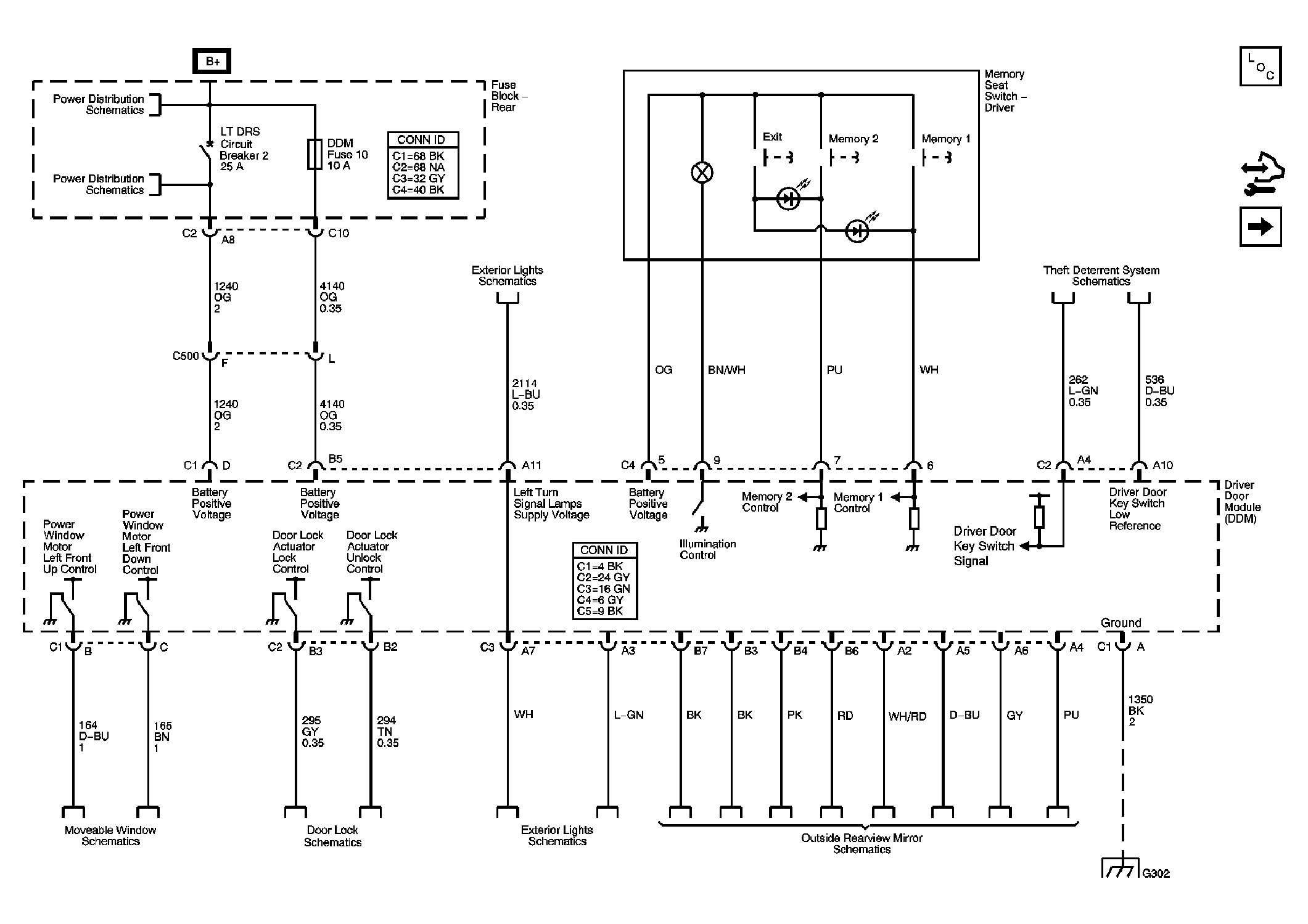

Fig 1: Power, Ground, & Subsystem References Schematics

Courtesy of GENERAL MOTORS CORP.

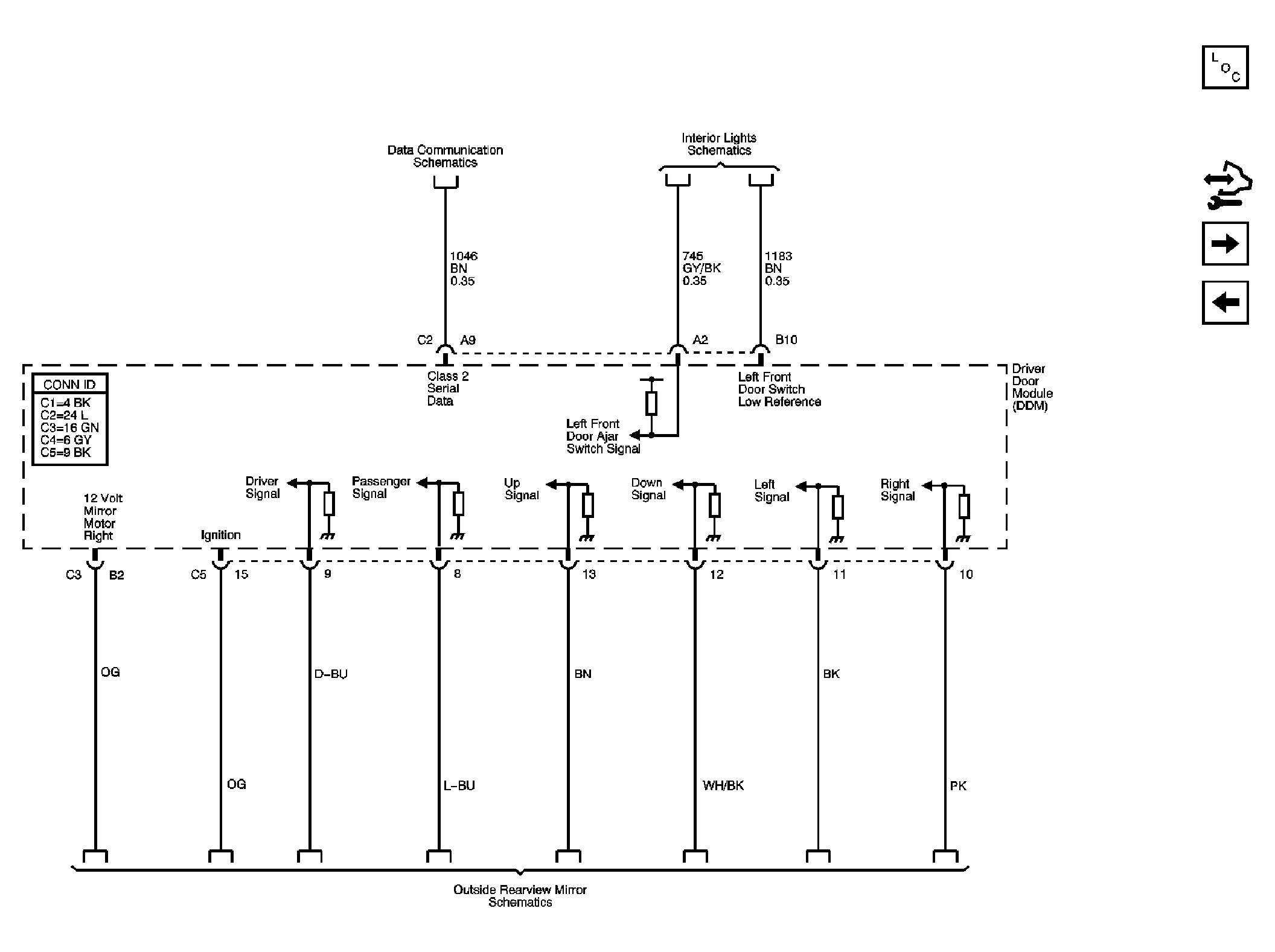

Fig 2: Serial Data & Subsystem References Schematics

Courtesy of GENERAL MOTORS CORP.

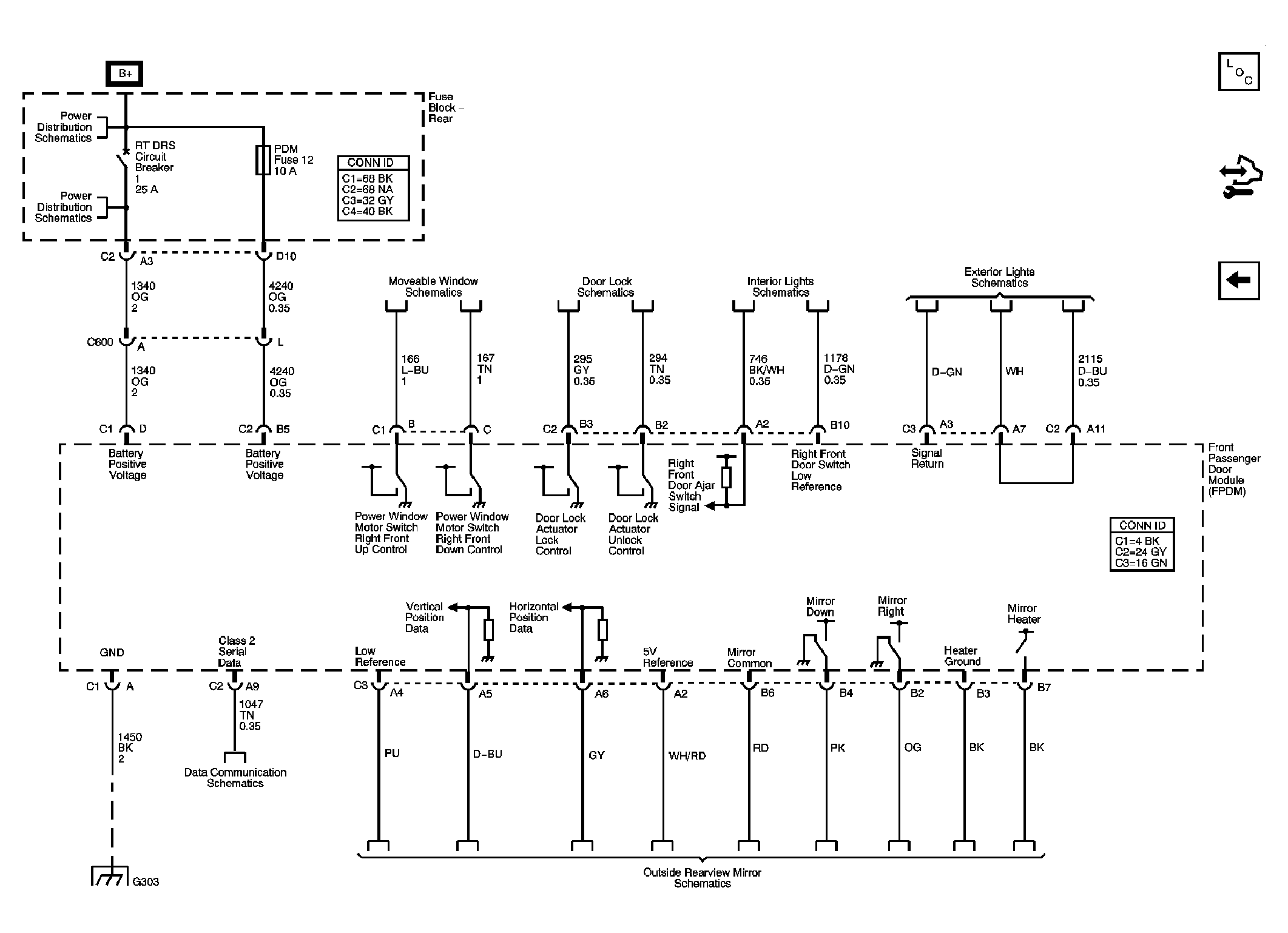

Fig 3: Front Passenger Schematics

Courtesy of GENERAL MOTORS CORP.
