Mirror Component Views

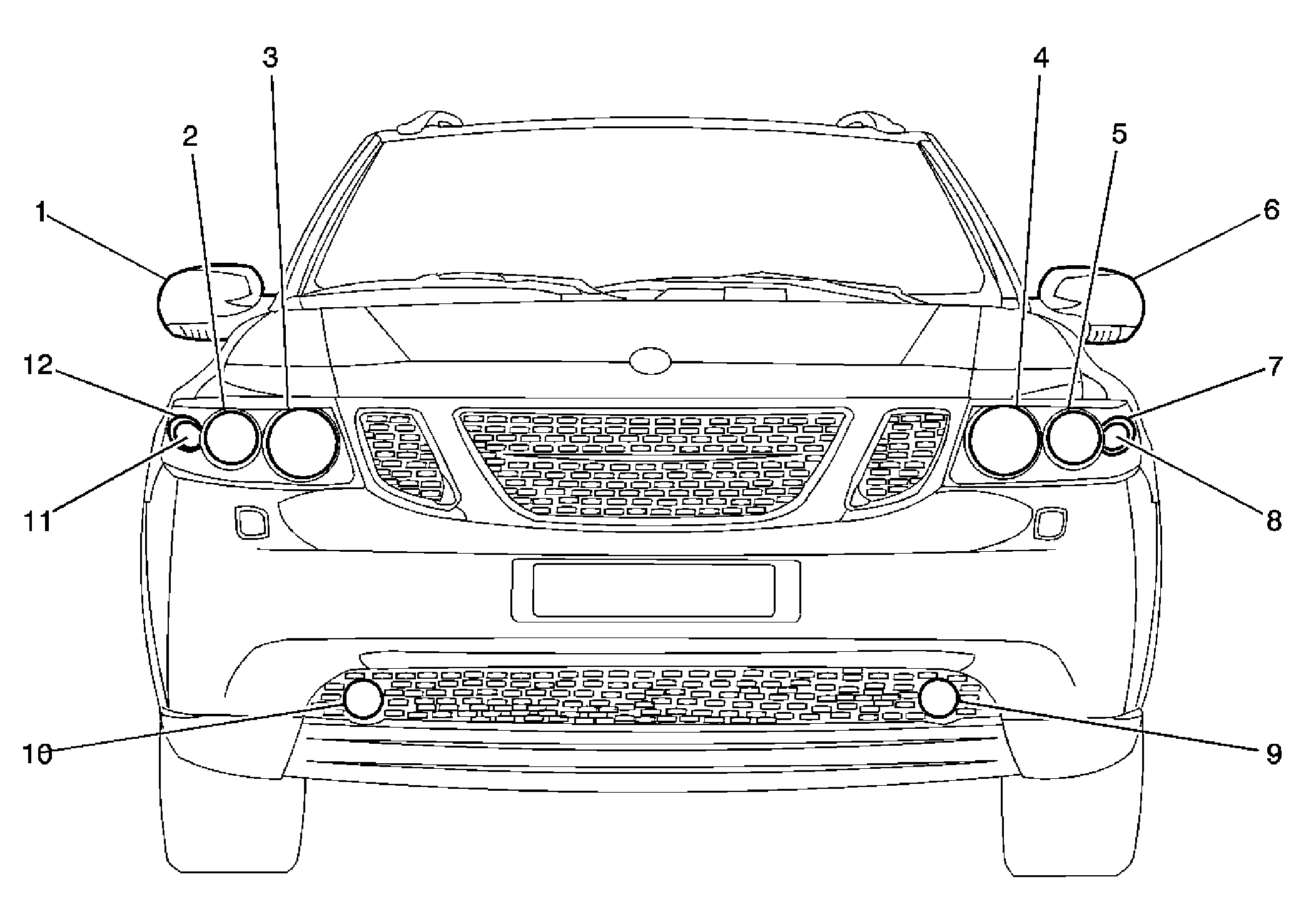

| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror - Passenger |
| 2 | Headlamp - Low Beam - Right |
| 3 | Headlamp - High Beam - Right |
| 4 | Headlamp - High Beam - Left |
| 5 | Headlamp - Low Beam - Left |
| 6 | Outside Rearview Mirror - Driver |
| 7 | Marker Lamp - LF |
| 8 | Park/Turn Signal Lamp - LF |
| 9 | Fog Lamp - LF |
| 10 | Fog Lamp - RF |
| 11 | Park/Turn Signal Lamp - RF |
| 12 | Marker Lamp - RF |
| Callout | Component Name |
|---|---|
| 1 | Connector (Headliner Harness) |
| 2 | Inside Rearview Mirror |
