Power and Grounding Component Views

Fig 1: Fuse Block-Underhood Component View
GM750749Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block-Underhood
Fig 2: View Of Battery, G101 & G106
GM1533058Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G101
2 Battery
3 G106
Fig 3: Underhood Grounds-Left, G102, G104, G105 Component View
GM750751Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G104
2 G105
3 G102
Fig 4: Underhood Ground-Right, G103 Component View
GM750753Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G103
Fig 5: Engine Block Grounds G107, G108, G109, G110 Component View (Six Cylinder Engine, 4.2L)
GM750754Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G108
2 G109
3 G110
4 G107
Fig 6: Engine Grounds G109, G107, Left Side Component View (V8 Engine, 5.3L)
GM853162Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G107
2 Engine Harness
3 G108

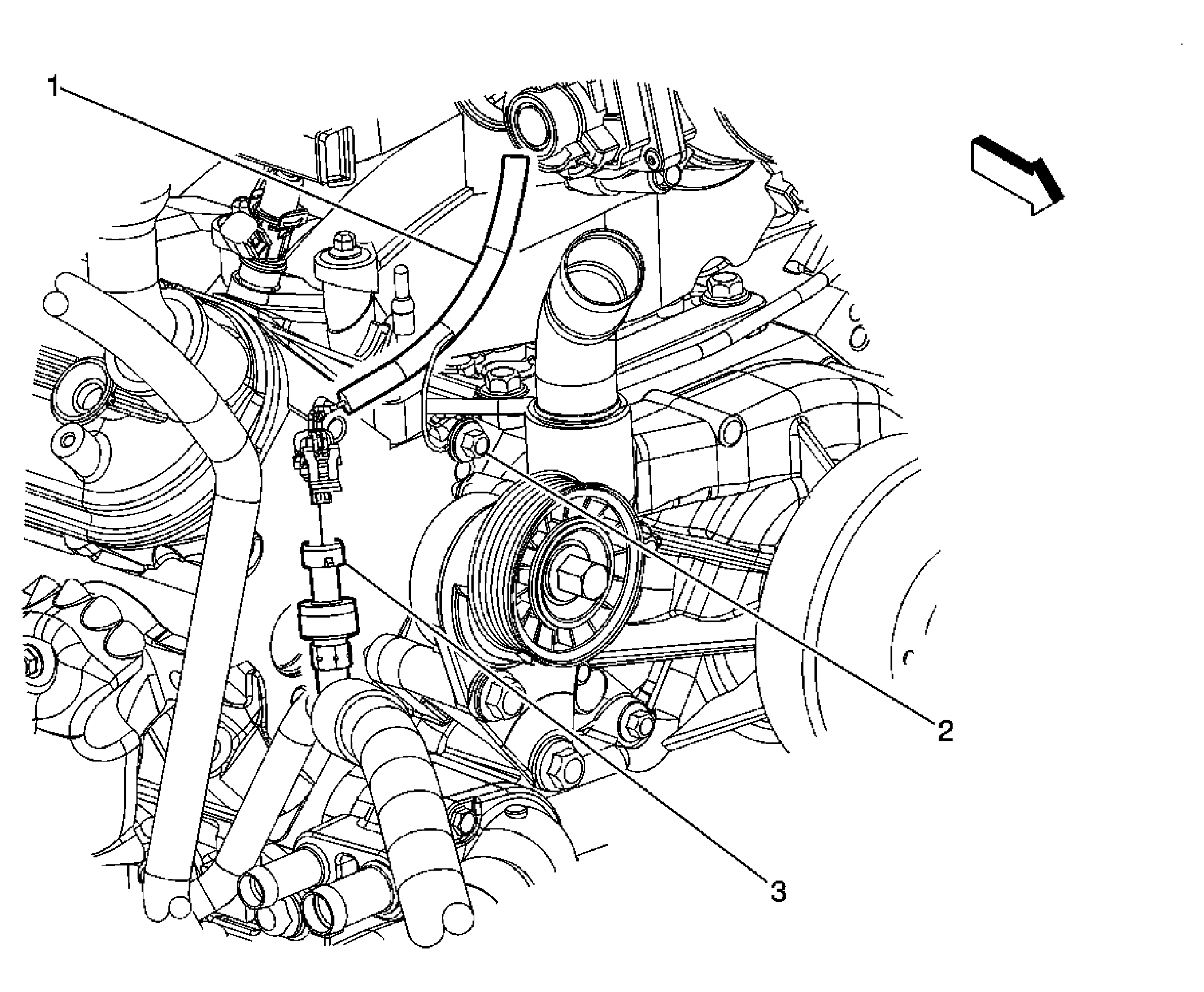

Fig 7: G109 (5.3L)
GM1686886Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Harness
2 G109
3 A/C Refrigerant Pressure Sensor

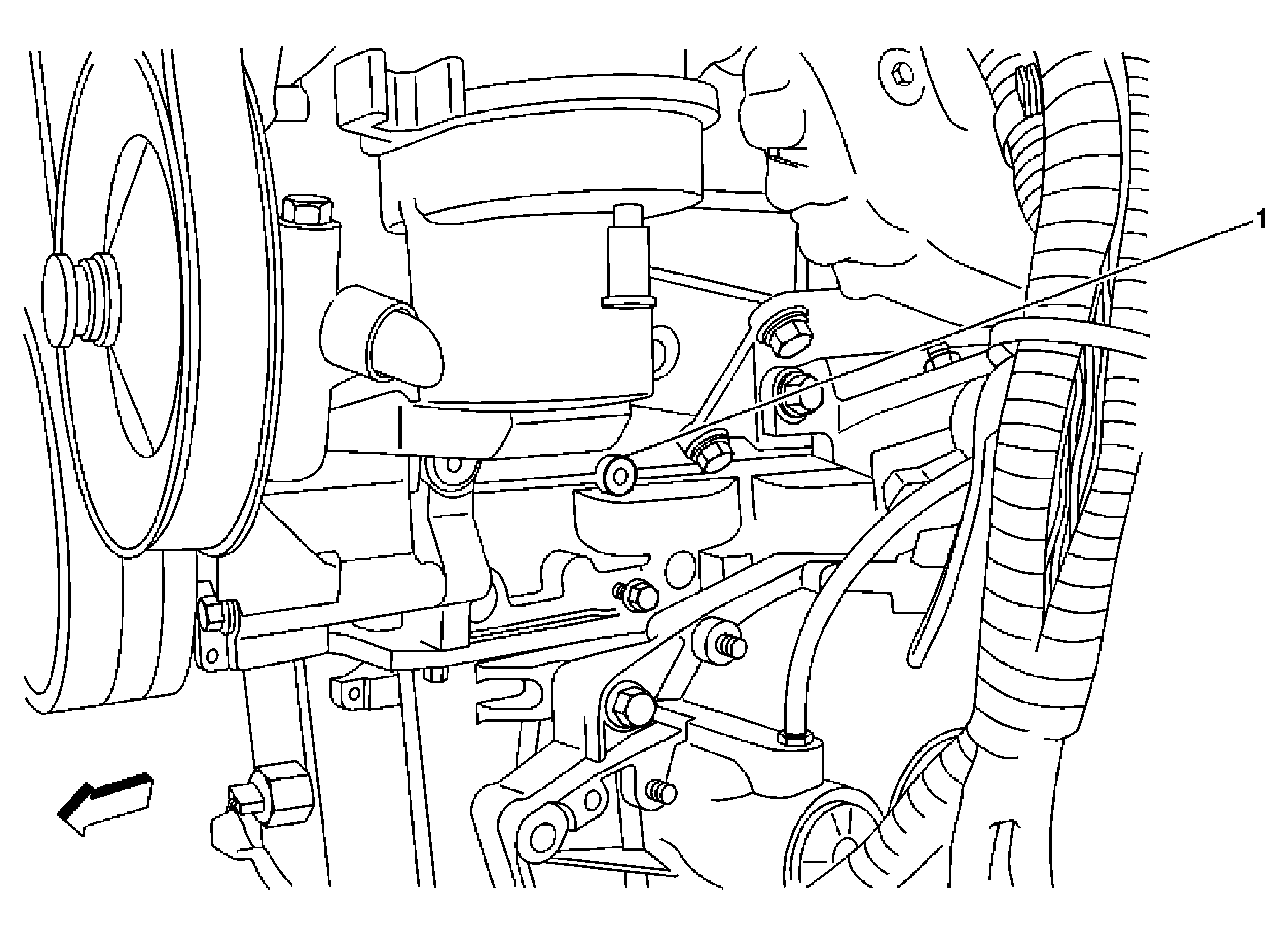

Fig 8: Left Side of Engine (5.3L)
GM1701712Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G110
Fig 9: Floor Console
GM1558672Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
2 Auxiliary Power Outlet - Front
3 Auxiliary Power Outlet - Front
Fig 10: B-Pillar, Left-G302 Component View
GM750756Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 G302
Fig 11: Fuse Block-Rear Component View
GM750757Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block-Rear
Fig 12: G304 Component View
GM750760Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G304
Fig 13: Frame, Left-G305 Component View
GM750762Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G305
Fig 14: G401, G402 Routing View
GM826159Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Side Lower Reinforcement
2 Body Harness
3 G401
Fig 15: Frame, Rear-G403-Short Wheelbase, Body Type VIN 3
GM750763Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G403
