Front of Vehicle/Engine Compartment Component Views

Fig 1: View Of Front Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Headlamp - Low Beam - Right
3	Headlamp - High Beam - Right
4	Headlamp - High Beam - Left
5	Headlamp - Low Beam - Left
6	Outside Rearview Mirror - Driver
7	Marker Lamp - LF
8	Park/Turn Signal Lamp - LF
9	Fog Lamp - LF
10	Fog Lamp - RF
11	Park/Turn Signal Lamp - RF
12	Marker Lamp - RF

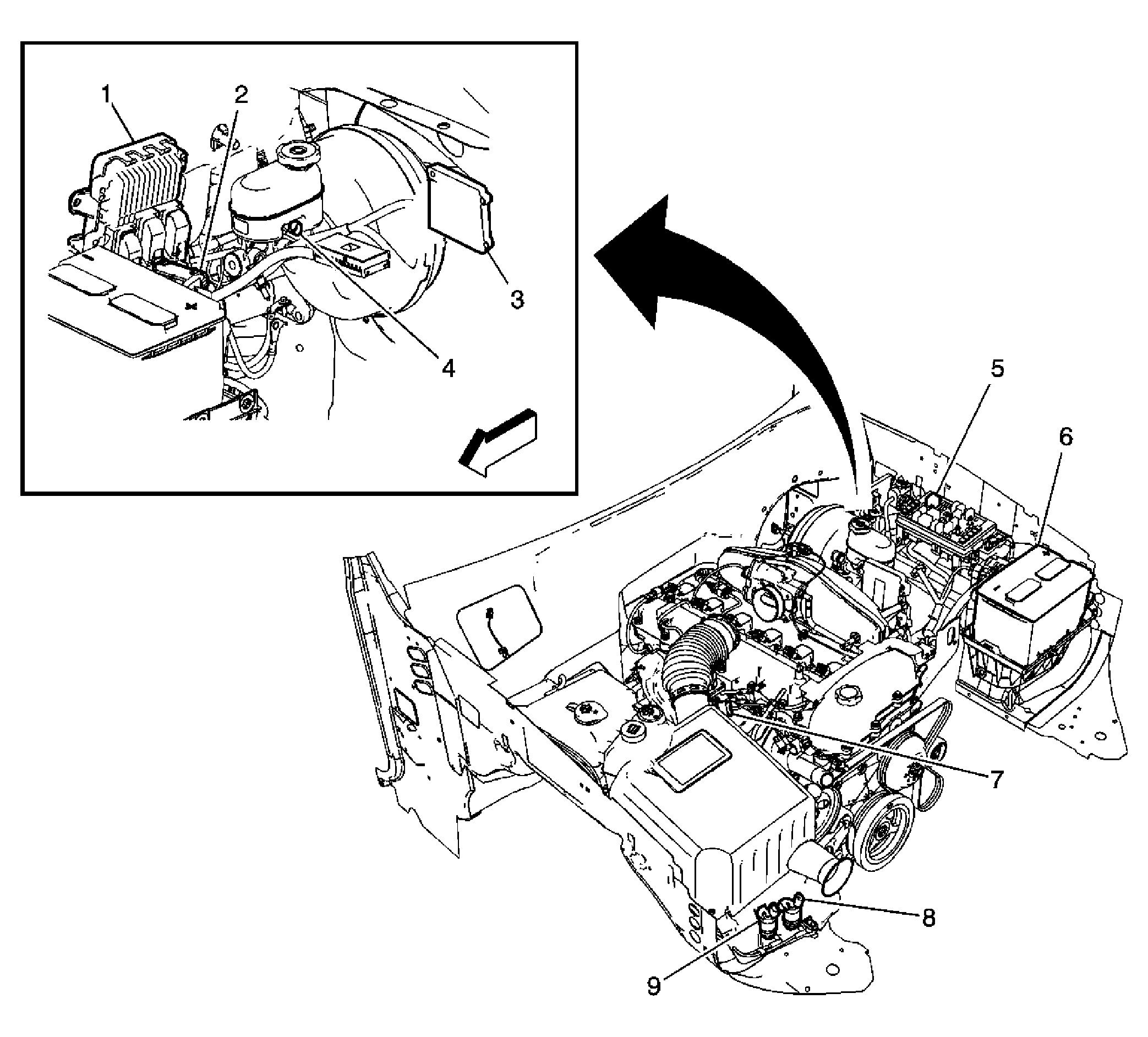

Fig 2: Front Engine Compartment (LL8)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Control Module (ECM)
2	Regulated Voltage Control Module
3	Transmission Control Module (TCM)
4	Brake Fluid Level Switch
5	Fuse Block - Underhood
6	Battery
7	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
8	Windshield Washer Fluid Pump
9	Rear Window Washer Fluid Pump

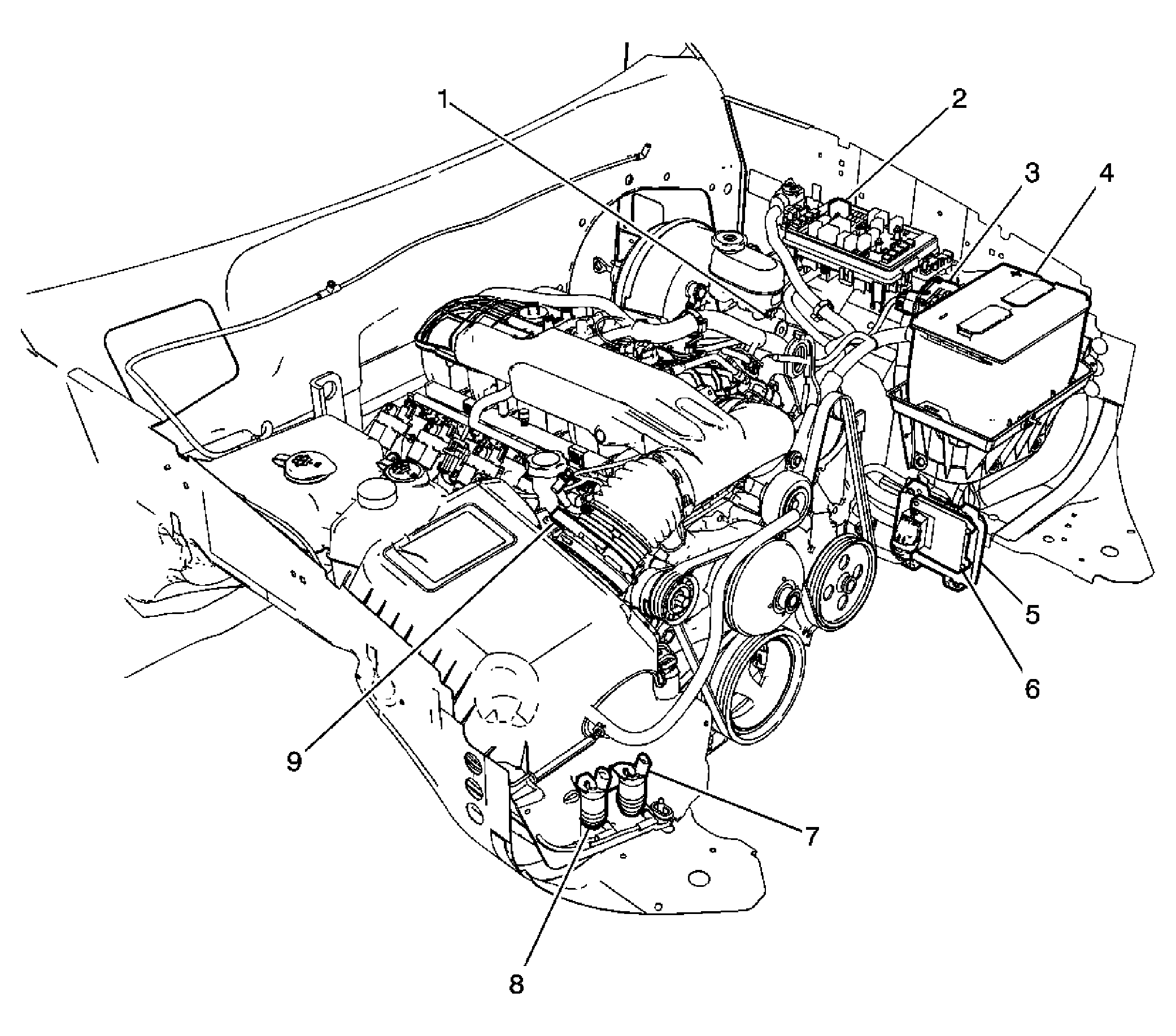

Fig 3: Front Engine Compartment (LL6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Fuse Block - Underhood
3	Regulated Voltage Control Module
4	Battery
5	Engine Control Module (ECM)
6	Transmission Control Module (TCM)
7	Windshield Washer Fluid Pump
8	Rear Window Washer Fluid Pump
9	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

Fig 4: Behind Left Headlamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Leveling Actuator - Left (TR6)
2	Hood Ajar Switch (UA2)

Fig 5: Behind Right Headlamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Leveling Actuator - Right (TR6)

Fig 6: Rear of Battery - 4.2L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Positive Battery Terminal
2	Regulated Voltage Control Module
3	Battery
4	Negative Battery Terminal
