Pressure sensor, A/C (620)

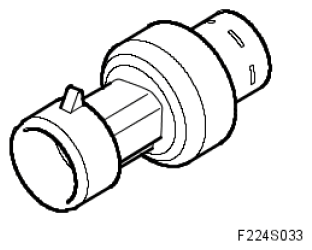

Fig 1: Identifying Pressure Sensor, A/C (620)
G05052600Courtesy of SAAB-SCANIA OF AMERICA, INC.
POWER SUPPLY REFERENCE CHART

Power supply, pin B V 5
Ground, pin A
Voltage on Pin C
280 kPa (2.8 bar) V approx. 0.5
27000 kPa (270 bar) V approx. 3.8
