Right headlamp (663FR)

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location: by the right side of the radiator

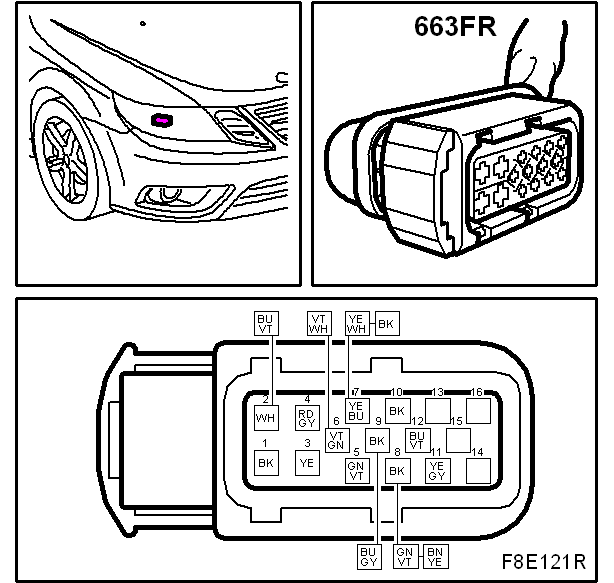

Fig 1: Identifying Right Headlamp (663FR) Connector Pinouts

Courtesy of SAAB-SCANIA OF AMERICA, INC.
