Home › Saab › 2010 › 9-3X Standard › Repair and Diagnosis › Engine Performance › TRIONIC T8 Fuel Control System › Component Locator › Fuse 2, main fuse box 727 for B207 › Notes

Fuse 2, main fuse box 727 for B207: Notes

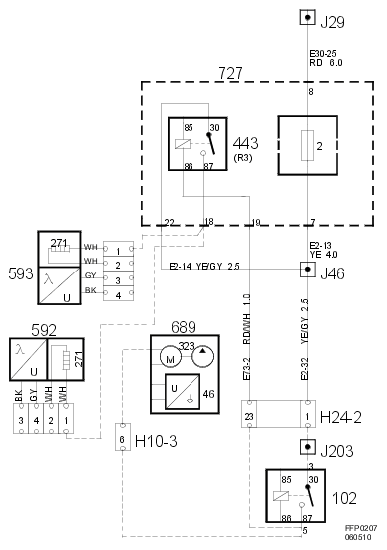

Fig 1: Fuse 2, Main Fuse Box 727 For B207 - Circuit Diagram
G06230680Courtesy of SAAB-SCANIA OF AMERICA, INC.
