Digital Radio Receiver Replacement

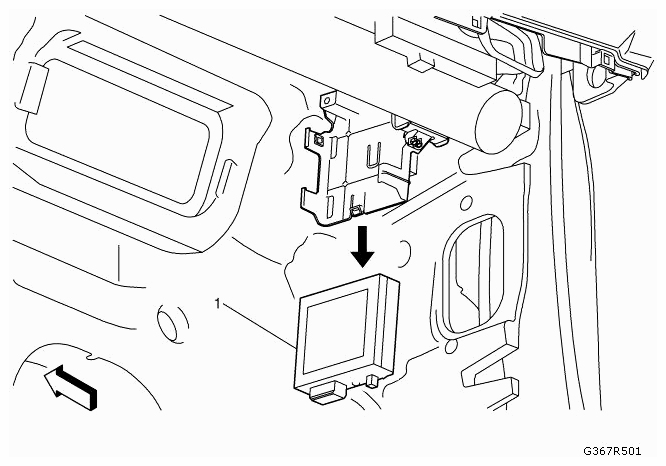

Fig 1: Locating Digital Radio Receiver

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the instrument panel compartment. Refer to GLOVE COMPARTMENT, REPLACEMENT .
1	Digital Radio Receiver Procedure  Disconnect the electrical connectors. Transfer any parts as needed. Program the digital radio receiver. Refer to CONTROL MODULE REFERENCES for programming and set up. NOTE: Do not interchange digital radio receivers between vehicles. Interchanging digital receivers between vehicles will activate the digital radio theftlock, XM Theftlock will be displayed.
