Theft Deterrent Module Replacement

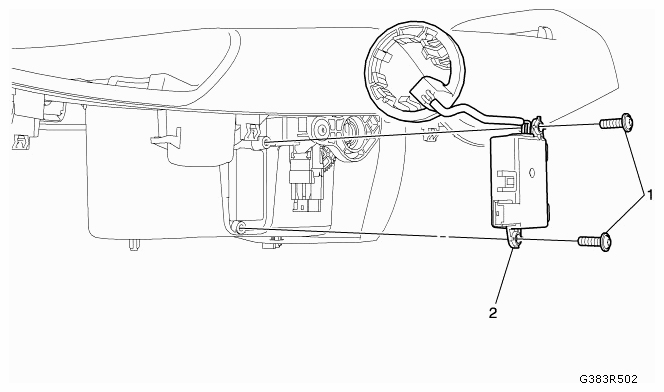

Fig 1: Identifying Theft Deterrent Module With Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the front floor console. Refer to FRONT FLOOR UPPER CONSOLE TRIM PLATE REPLACEMENT .
1	Theft Deterrent Module Fastener (Qty: 2) Refer to FASTENER CAUTION . Tighten  9 Nm (80 lb in)
2	Theft Deterrent Module Procedure  Disconnect the electrical connectors.
