Theft Deterrent Sensor Replacement

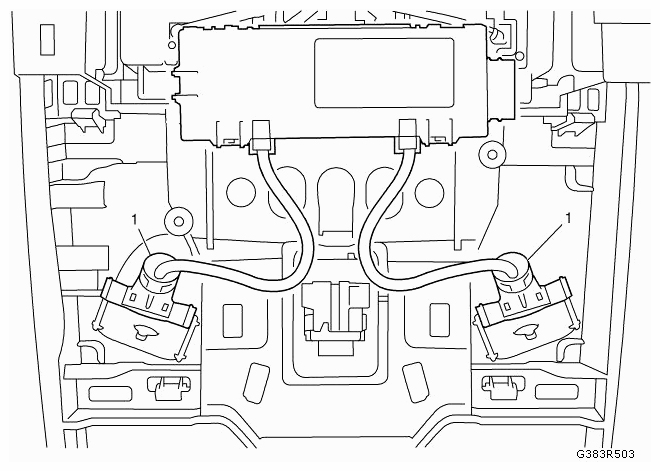

Fig 1: Identifying Theft Deterrent Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the roof console. Refer to ROOF CONSOLE REPLACEMENT (ASSEMBLY) or ROOF CONSOLE REPLACEMENT (FRAME) .
1	Theft Deterrent Sensor Procedure  Release the theft deterrent sensor left and right side out of the retainer. Remove the theft deterrent sensor module. Refer to CONTROL MODULE REFERENCES for programming and set up procedures.
