Engine Shield Replacement

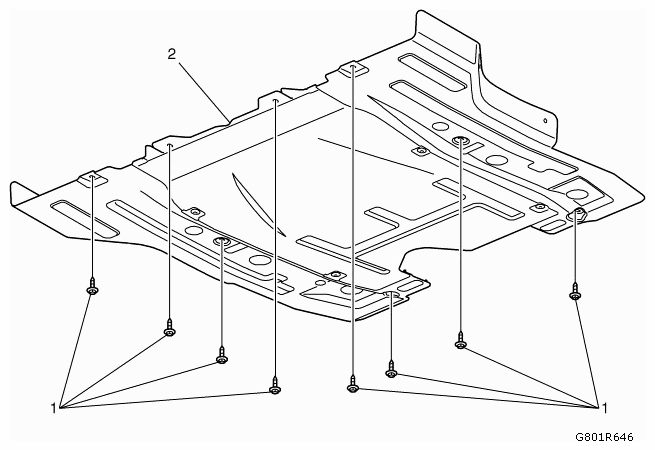

Fig 1: Removing Engine Shield And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Engine Shield Fastener (Qty: 8) Refer to FASTENER CAUTION . Tighten  3 Nm (27 lb in)
2	Engine Shield
