Preliminary Procedure
- Release the electric parking brake using electrical release:
- 1.1. Set ignition in Run mode and put your foot on top of the service brake.
- 1.2. Press the parking brake switch down and hold for 5 seconds, then a solid yellow telltale is shown on instrument panel.
- 1.3. Press the parking brake switch again within 5 seconds, then a flashing yellow telltale is shown on instrument panel.
- Release the electric parking brake using manual release:
- 2.1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE
.
- 2.2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION
- 2.3. Remove the rear wheelhouse panel liner. Refer to REAR WHEELHOUSE PANEL LINER REPLACEMENT
.
- 2.4. Remove the rubber plug. (Arrow)
- 2.5. Using a square tool with measure 3, 2 mm (1/8") release the tension of the cable.
|

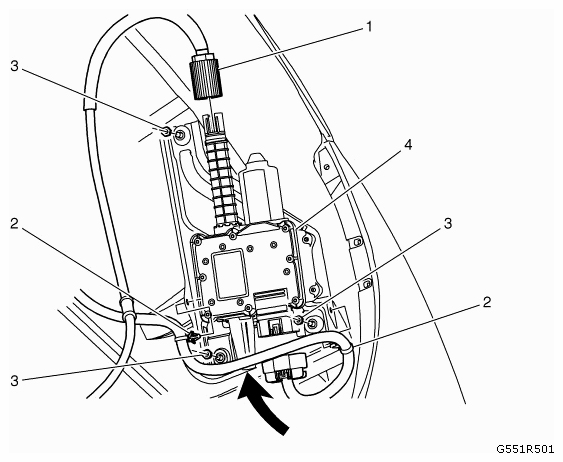

| 1 |
Electronic Parking Brake Control Module Cable |
| 2 |
Electronic Parking Brake Control Module Clip (Qty: 2) |
| 3 |
Electronic Parking Brake Control Module Nut (Qty: 3)
Refer to FASTENER CAUTION
.
Tighten
9.5 Nm (84 lb in) |
| 4 |
Electronic Parking Brake Control Module
Procedure
Program the electronic parking brake control module. Refer to ELECTRONIC PARKING BRAKE CONTROL MODULE PROGRAMMING AND SETUP
. |
