Notes
Keyless Ignition: Notes

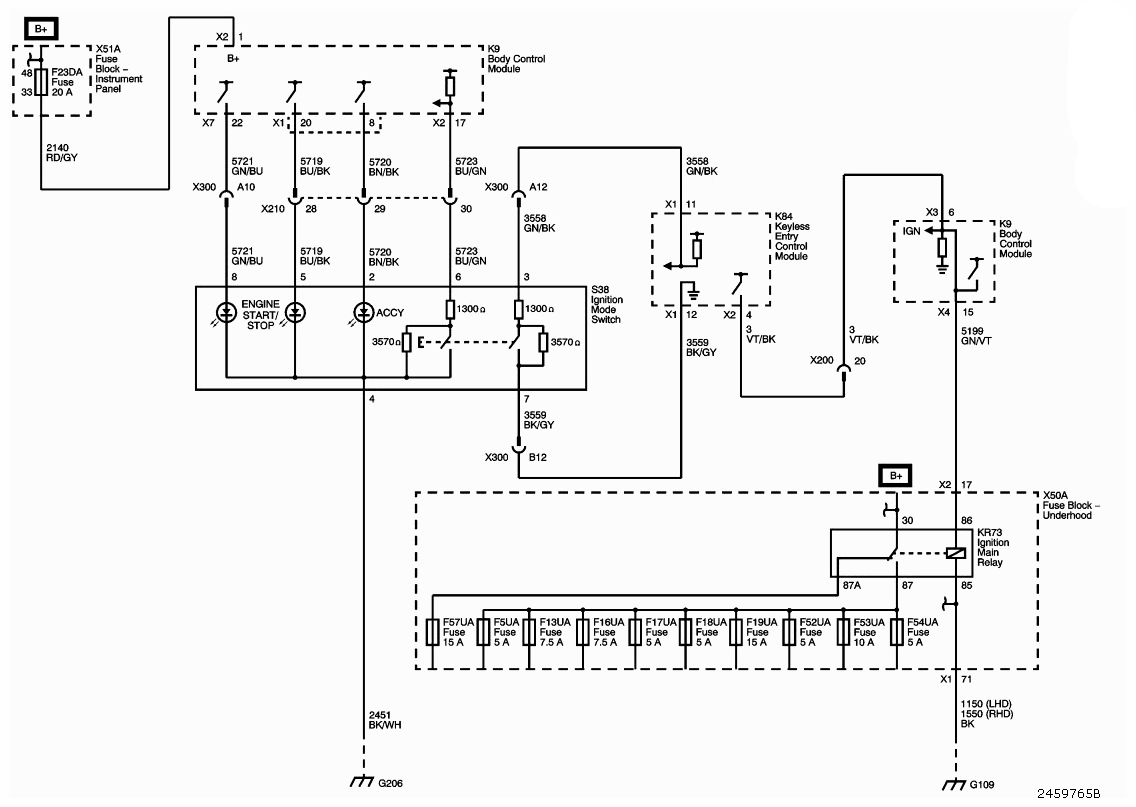

Fig 1: Power Moding Schematics - Keyless Ignition
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
