Power Moding
›
Notes
Power Moding: Notes

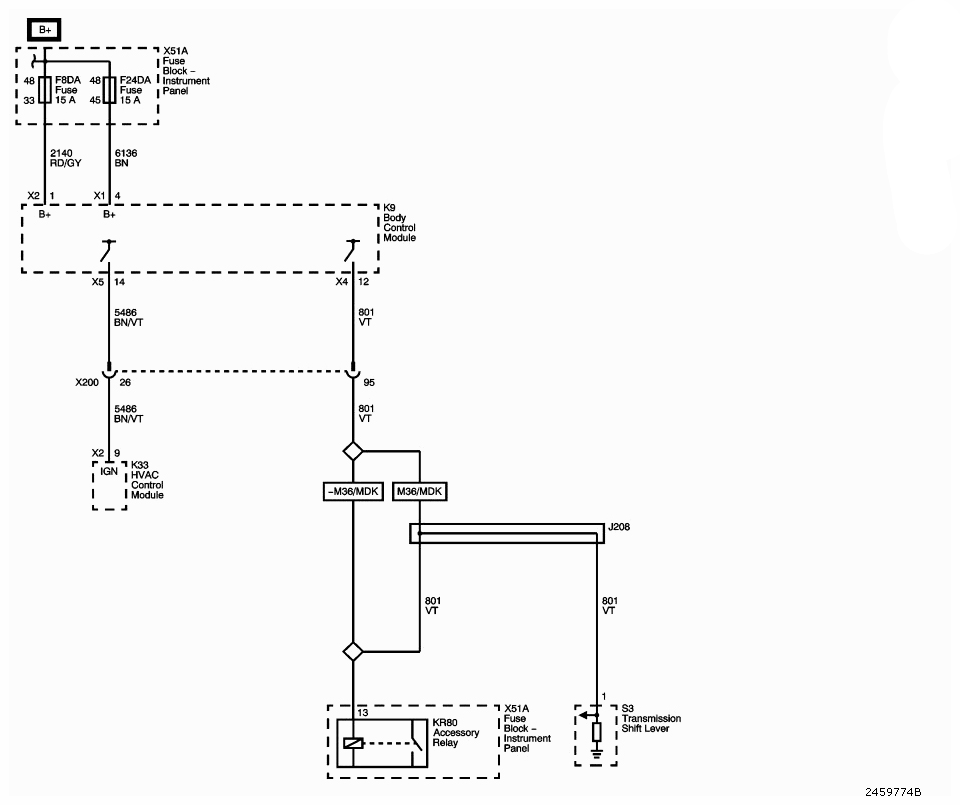

Fig 1: Power Moding Schematics
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
