Preliminary Procedure
- Remove the secondary air injection inlet pipe. Refer to SECONDARY AIR INJECTION PUMP REPLACEMENT
.
- Remove the charge air cooler outlet hose. Refer to CHARGE AIR COOLER OUTLET HOSE REPLACEMENT (LAU/A28NER)
.
- Drain the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (LAU/A28NER)
.
- Remove the drive belt from the pulley belt idler. Refer to DRIVE BELT REPLACEMENT
.
- Remove the front bumper fascia center support bracket. Refer to FRONT BUMPER FASCIA CENTER SUPPORT BRACKET REPLACEMENT
.
- Remove the radiator upper bracket. Refer to RADIATOR REPLACEMENT (LAU/A28NER)
.
|

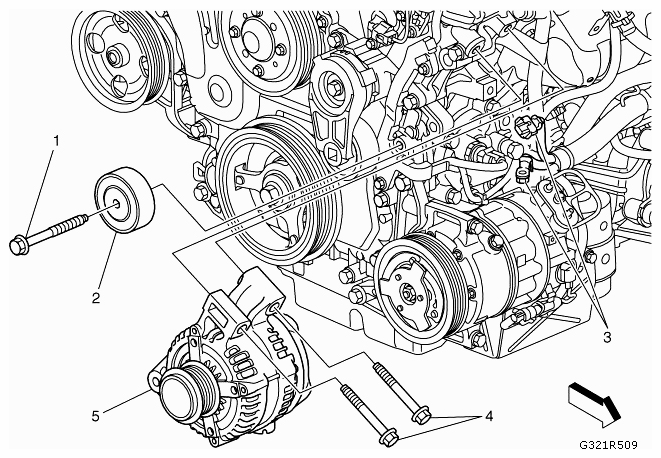

| 1 |
Alternator Pulley Belt Idler Fastener
Refer to FASTENER CAUTION
.
Tighten
15 Nm (11 lb ft) |
| 2 |
Alternator Pulley Belt Idler |
| 3 |
Alternator Wiring Harness Connector
Procedure
- Disconnect the electrical connector.
- Remove the wiring harness fastener.
|
| 4 |
Alternator Fastener (Qty: 2)
Tighten
58 Nm (43 lb ft) |
| 5 |
Alternator
Procedure
- Remove the charge air cooler outlet duct bracket.
- Remove the engine oil cooler hose from engine oil cooler pipe.
|
