Battery Negative Cable Replacement (Gasoline)

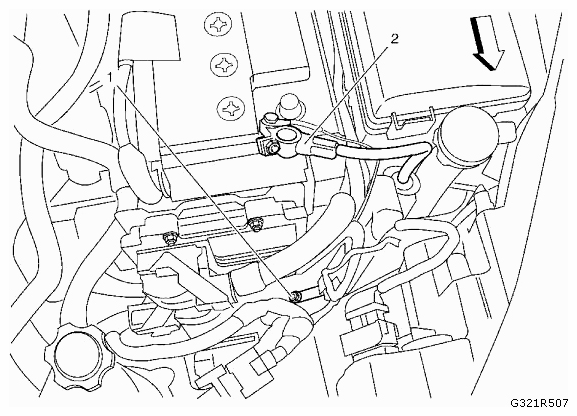

Fig 1: Identifying Battery Negative Cable And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
1	Battery Negative Cable Fastener Refer to FASTENER CAUTION . Tighten  20 Nm (15 lb ft)
2	Battery Negative Cable Procedure  Transfer any parts as needed. NOTE: Refer to CONTROL MODULE REFERENCES for programming and set up information.
