Battery Tray Replacement (Diesel)

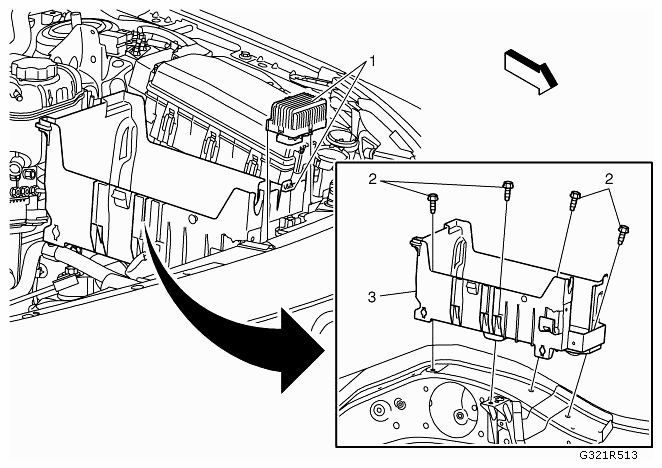

Fig 1: Identifying Battery Tray, Fastener And Glow Plug Relay

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the battery. Refer to BATTERY REPLACEMENT . Remove the engine control module with bracket from battery tray.
1	Glow Plug Relay Procedure  Remove the relay with bracket from the battery tray.
2	Battery Tray Fastener (Qty: 4) Refer to FASTENER CAUTION . Tighten  15 Nm (11 lb ft)
3	Battery Tray Procedure  Remove servo oil pipe from battery tray clips.
