Generator Replacement (LLU/A16LET)

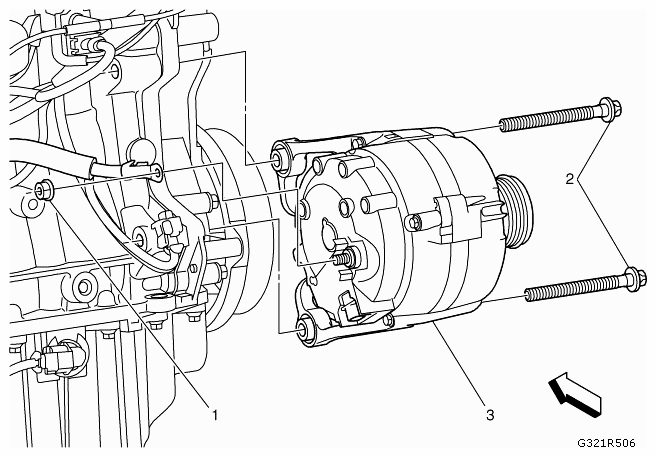

Fig 1: Identifying Generator And Wiring Harness Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Remove the drive belt.
1	Generator Wiring Harness Fastener Refer to FASTENER CAUTION . Procedure  Disconnect the electrical connector. Tighten  13 Nm (115 lb in)
2	Generator Fastener (Qty: 2) Tighten  35 Nm (26 lb ft)
3	Generator
